Details

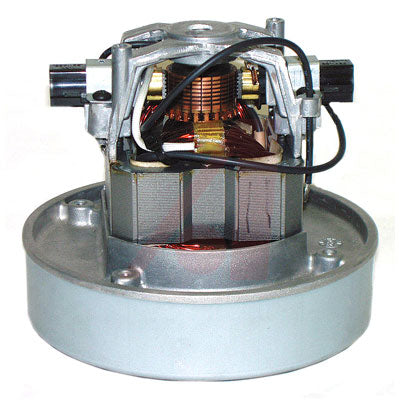

Designed to move clean and dry air. Ideal for use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.
This motor also replaces Proteam Supercoach motor 101719 and Proteam Motor 105162. Also fits many Kenmore canisters using motor 700589. Uses 33326-1 Carbon brushes shown in related items.
Technical Specs
- Item Vacuum Motor
- Motor/Blower Type Thru-Flow
- Discharge Thru-Flow
- Blower Stages 1
- No. of Speeds 1
- Motor Enclosure Design Open
- CFM @ 2-In. Orifice 147.0
- Vacuum (H2O Sealed) 98.0
- Voltage 120
- Hz 60/50
- Phase 1
- Max. Amps 12.0
- Max. Air Watts 500
- Motor Mounting Type Lug
- Motor Design Universal AC/DC
- Motor Mounting Position All Angle
- Motor Thermal Protection None
- Ins. Class A
- Bearings Ball
- Ambient Temperature 40 Degrees C
- Body Dia. 5.7"
- Overall Height 4-3/4"
- Mounting Brackets Aluminum
- Duty Intermittent
- Average Life 500 hr.
- Motor Efficiency Group Energy Efficient
- Standards UL Listed (E47185), CSA Certified (LR31393)
- Replacement Brushes 2UV81
.
California residents see Prop 65 WARNINGS
WARNING! This product contains a chemical know to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warning.ca.gov
WARNING! This product contains a chemical know to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warning.ca.gov- You can also find this product in:
Additional Information
| SKU | 119347-00 |
|---|---|
| Brand | Ametek Lamb |
Will motor #119347-00 fit my Kenmore Whispertone model #116.2148090? If not, what motor will replace the original Lamb motor?
A:
Only if you have motor 700589 currently in the machine.
EZvacuum Support answered on March 9, 2020
