Details
Specifications:
120 volt
5.7 inch diameter 2-stage By-Pass motor
1.75 inch diameter output tube
Overall height of 7.2 inches
UL Type B
Maximum amps of 4.5
250 watts
48 inches of water lift (H2O)
90 CFM at 2 inch orifice
Control Type: electrical
Suitable for operational ambient temperatures of 0-50 degrees centigrade
Design Features:
UL Component Recognized
CSA and TUV Certified
RoHS approved (Restriction of Hazardous Substance Directive). Restricts use of hazardous materials in electronic and electronic equipment
Adjustable Air Performance
Thermal Protection/Locked Rotor Protection
Compact in size
Long operational life
Low noise to power ratio
Working air is the cooling in this Thru Flow configuration
Applications:
Dental/medical evacuators
Medical drills
Heart pumps
Computer peripherals
Material handling
Air samplers and evacuators
Photographic hold down
Business machines such as printers and collators
Air beds
Vacuum forming equipment
Fuel cells
Textile machines
Paper handling-pick up, feed, transport separate
Cooling
Turning bars
Tape drives
ATM/banking equipment
Toner control in printers
Ink drying
.

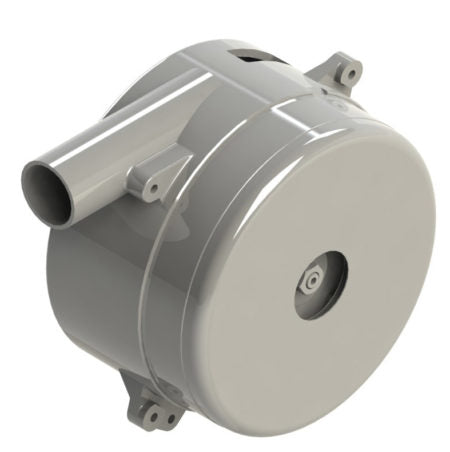

![116642-03 MOTOR-WINDJAMMER,1 STAGE,5.7 DIAM,TANG]()
![AMETEK WINDJAMMER 116642-03]()
120 volt
5.7 inch diameter 2-stage By-Pass motor
1.75 inch diameter output tube
Overall height of 7.2 inches
UL Type B
Maximum amps of 4.5
250 watts
48 inches of water lift (H2O)
90 CFM at 2 inch orifice
Control Type: electrical
Suitable for operational ambient temperatures of 0-50 degrees centigrade
Design Features:
UL Component Recognized
CSA and TUV Certified
RoHS approved (Restriction of Hazardous Substance Directive). Restricts use of hazardous materials in electronic and electronic equipment
Adjustable Air Performance
Thermal Protection/Locked Rotor Protection
Compact in size
Long operational life
Low noise to power ratio
Working air is the cooling in this Thru Flow configuration
Applications:
Dental/medical evacuators
Medical drills
Heart pumps
Computer peripherals
Material handling
Air samplers and evacuators
Photographic hold down
Business machines such as printers and collators
Air beds
Vacuum forming equipment
Fuel cells
Textile machines
Paper handling-pick up, feed, transport separate
Cooling
Turning bars
Tape drives
ATM/banking equipment
Toner control in printers
Ink drying
.
California residents see Prop 65 WARNINGS
WARNING! This product contains a chemical know to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warning.ca.gov
WARNING! This product contains a chemical know to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warning.ca.gov- You can also find this product in:
Additional Information
| SKU | 116643-03 |
|---|---|
| Brand | Ametek |
| Manufacturer | Ametek Lamb |
