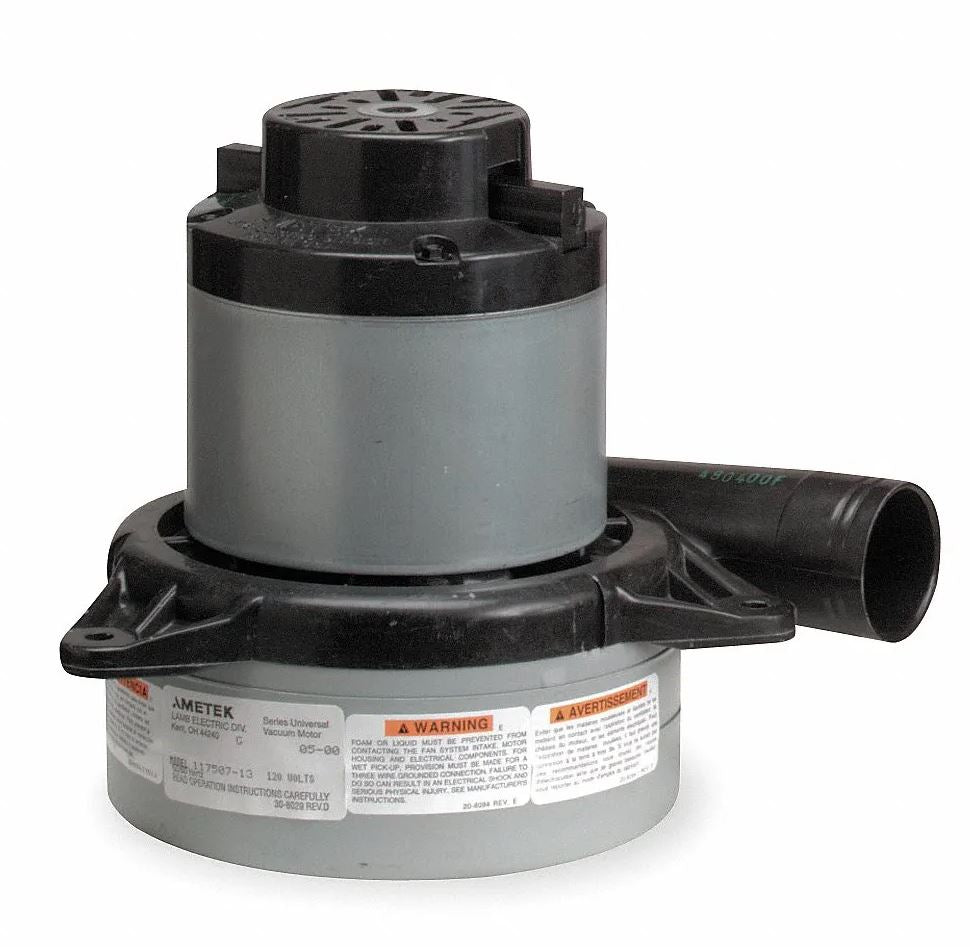

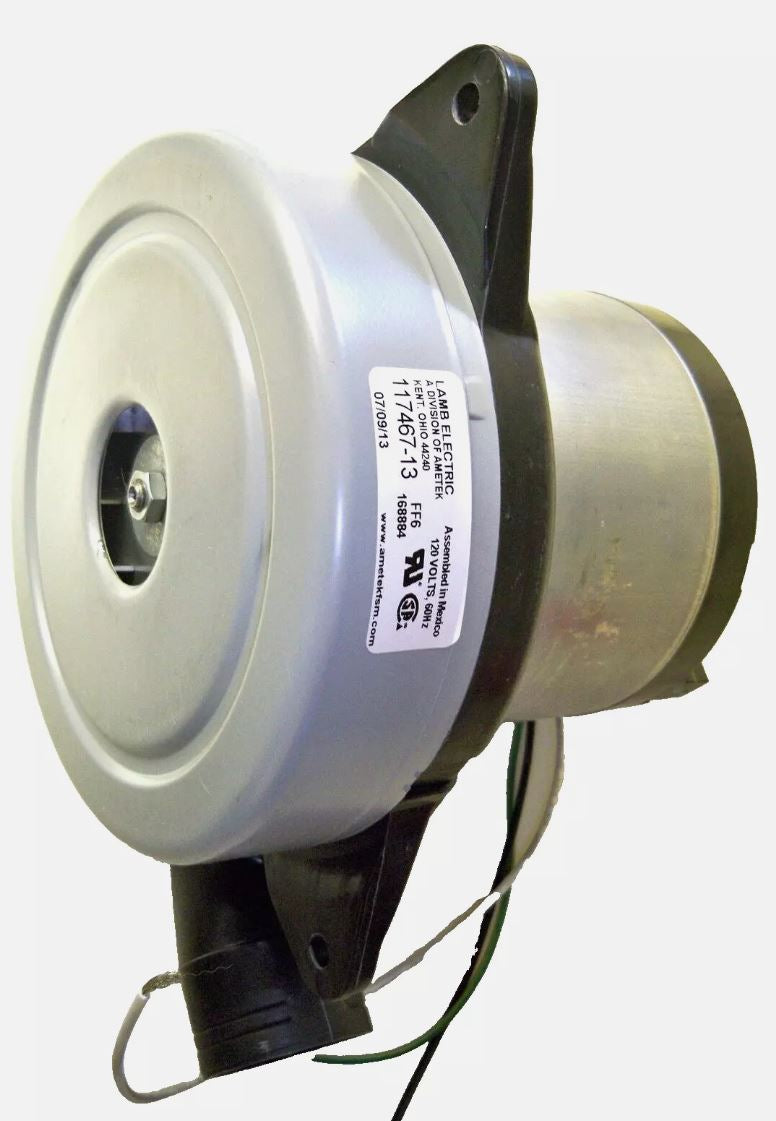

Ametek Lamb 117467-13 AC Vacuum Motor, Tangential, 1475 W, 7.2 Frame Size, 2 Stage, 120 V

This is a 7.2 inch, 120 Volt, B/2 Stage Tangential Bypass AC Motor

This motor works on many models of built vacuums including
AstroVac MK-V, SR-22, SR-50, SR-60, SR-72
Beam 287, 287S/SP, 287C, 294, 297, 297S, 297SP, 297C, SR-72, 310, 875, 875B, 2875, 2875A, 387, 387A, 2200, 2875 Central Vacuum, 2875A
Budd 5807, 1602, 1914P, 1914S, 25807P, 25807S
Eureka CV1200, CV900
Modern Day SV 110V
NuTone CV550
Vacumaid H-1, P-118, P-128, PX-120
WalVac 425

Ambient Temp. Range 40 Degrees C
Average Life 700 hr.
Bearings Ball
Blower Stages 2
Body Dia. 7.2"
Cfm @ 2-in. Orifice 110 CFM
Discharge Tangential
Duty Intermittent
Enclosure Open
Hz 50/60
Insulation Class A
Max. Air Watts 455 W
Max. Amps 12.8
Motor Design Universal Ac/Dc
Motor Enclosure Design Open
Motor Mounting Position All Angle
Motor Mounting Type Lug
Motor Thermal Protection None
Mounting All Position
Mounting Bracket Material Thermoset Plastic
Mounting Brackets Thermoset
Number Of Speeds 1
Overall Height 7 11/16"
Phase 1
Replacement Brushes Mfr. No. 833410-52
Thermal Protection None
Vacuum (h2o Sealed) 123
Voltage 120 VAC
