Aftermarket Miele Canister Vacuum Cleaner Motor 115923, 117923-23, 117923, 7923-23, 4M903

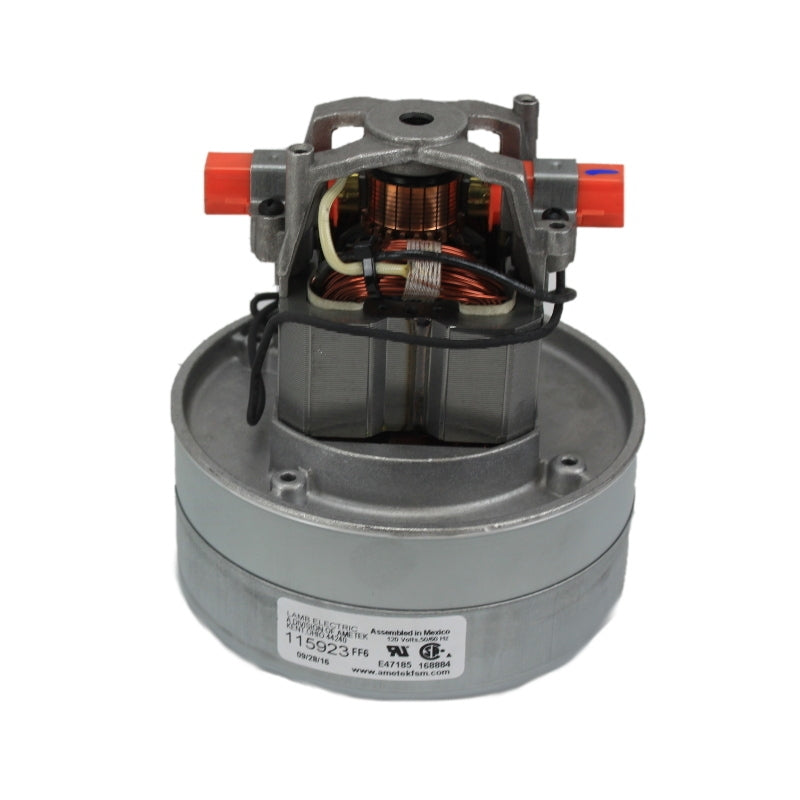

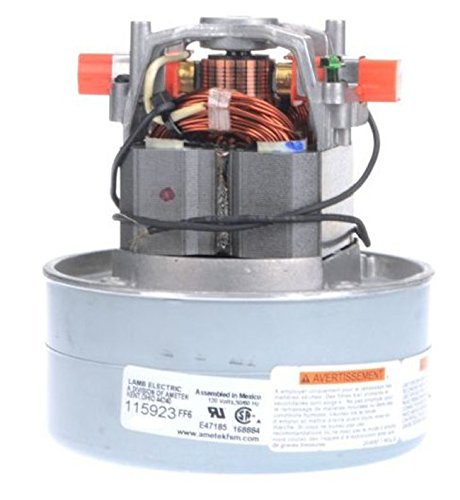

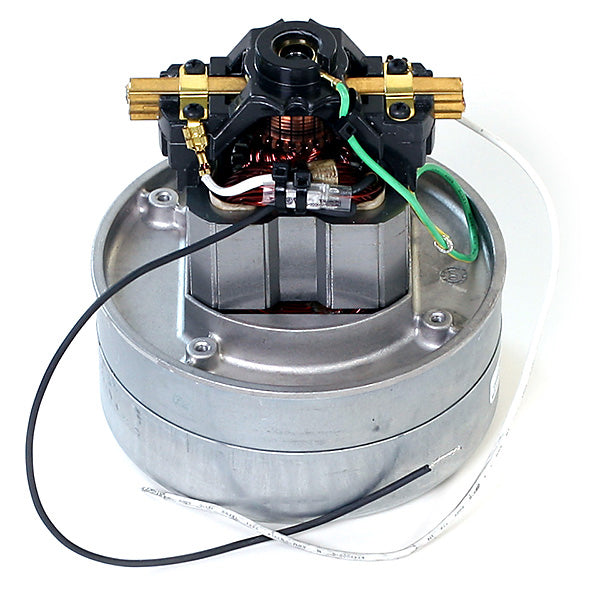

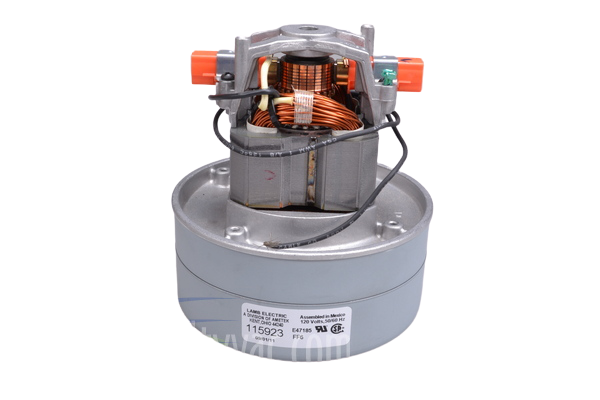

Brand New Genuine Ametek Lamb 2-Stage 5.7" Hi Performance Electric Motor. Fits some TriStar, some Miele like S4 and S4000 series, S428I, S4212, Miele S434i (White Pearl) which takes 06189340 motor except Miele 3000 Series vacuums, and some other vacuum cleaners. Use on Miele models which uses H/J/G bags. Also fits some blower models. Will work for NuTone 352


Motor Dimensions:
Fan Housing: 5.7"
Overall Height: 6 1/4" (Not including the metal flange that protrudes from the bottom of the metal fan housing on some original motors.)
May replace 4698861, MN4424240, 189990 42 but needs adjustment

⚠ Does not fit newer Miele Models. Please confirm with us before ordering.

Please check the motor specs before ordering.
Thru Flow Vacuum Motor/Blower, Body Diameter 5.7 Inches, Blower Stages 2, Voltage @ 50/60 Hz 120 Volts, Maximum Current Rating 10.8 Amps, Maximum Air Power 447 Watts, Bearing Ball/Ball, Air Flow @ 2 Inches Orifice 122.0 CFM, Vacuum (H2O Sealed) 100.4 Inches, Thermal Protection No, Style B, Overall Height 6 3/16 Inches, High Efficiency. Prt #115923, 115-923, 117923-23, 117923, 7923-23

SPECIFICATIONS:
Motor Type :    Series Universal
Input Voltage :    120 VAC
Frequency :    50/60 Hz
Fan Diameter :    5.7 in.
No. Fan Stages :    2
Fan System Style :    Through-Flow
Air Discharge :
Operating Temp :    32-104°F
Bearing System :    Ball/Ball
Frame :    Skeleton
Brush Type :    Carbon
Inlet Tube Dia. :    None
RFI Choke :    None
Speed :    1

Note: EZvacuum.com is not Miele Authorized Dealer. The part above is not a Genuine Miele OEM product but is a "Made for Miele", also referred to generic or aftermarket replacement part. Miele's warranty will not apply on this item.
