Ametek 116309-00 1-stage 5.7 vacuum motor

Ametek Lamb

Ametek 116309-00 Thru Flow Peripheral Vacuum Motor - 1 Stage, 120 Volt, 5.7 Inch, 26,870 RPM

Ametek 116309-00 Thru Flow Peripheral Vacuum Motor - 1 Stage, 120 Volt, 5.7 Inch, 26,870 RPM

SKU: 116309-00

$79.99
$99.99 $79.99
Sale Sold out
Taxes calculated at checkout
Visa
Mastercard
American Express
Discover
Apple Pay
Google Pay
Venmo
PayPal
Free Shipping
Free Shipping

Easy Returns
Easy Returns

Need Help?
Need Help?

View full details

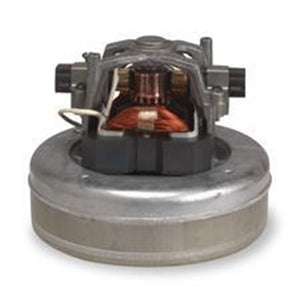

New Lamb Ametek 116309-00 metal motor is a 1-stage, 5.7 inch, 110-120 volt. The Ametek 116309-00 is a 1-stage replacement vacuum motor designed for car wash applications. It incorporates a peripheral discharge and thru-flow design, measuring 5.7 inches in size. This motor operates at a maximum speed of 26,870 RPM and is compatible with 120-volt power supplies.
Motor Specs

  • Motor Type: Thru Flow
  • Discharge: Peripheral
  • Bearings: Ball Bearing/Sleeve
  • Sealed Vacuum: 63 inches
  • Maximum Air Watts: 190
  • Maximum Current Rating 6.8 Amps
  • Maximum Air Flow: 112 CFM
  • Motor Speed: 22,280
  • Compatible with select models of Kenmore, Eureka one-speed, and 1-fan canisters ranging from 500 to 700 series, including models 822, 832, 842, 1244 to 1255, 1268, 1271, 1273, 1620, 1640A, 1810A, 3200, and 3400 series. Also fits Advance Carpetriever, new Carpetwin 140, Shop Vac models 612-21, 612-22, 612-24, Westinghouse, and certain dry Shop Vacs and Shetland units. Designed exclusively for dry vacuuming applications.
  • Part Numbers: 116309-00, 11630900

Customer Questions & Answers

Q: I have an115737. Will this fit. Not sure how to reference the part number - asked by Troy
Asked on 2021-05-03 22:57:38
A: Here is the motor 115737: https://www.ezvacuum.com/ametek-lamb-motor-5-7-120-volt-b-s-2-stage-thru-flow-115737.html
EZvacuum Support answered on 2021-05-06 19:55:18
Q: Does this motor fit the Kenmore model # 116.32775690C? Anyone know what motor part # will fit the Kenmore 116.32775690C, thanks. - asked by kt
Asked on 2019-08-18 03:26:48
No answers yet.
Q: I have a Kenmore can showing model #of 116.26131 and 116.2694. Motor 1speed,1fan. 1.9 peak hp. 5&3/4 wide x about 5 high. This motor work? - asked by Terry Crowder
Asked on 2019-06-22 05:39:16
No answers yet.
Q: Dear sir....please inf about the replacement part of brushs of ameteck ref 116309-00.Also the discount to buy 20 ameteck motors and 40 brushes.Thank - asked by The coffee Solutions
Asked on 2018-02-05 15:06:11
No answers yet.
Q: I'm looking for a lamb electric motor 120v 2 stage for a es series dry numatic serial #DL11101T OR 063200123 FOR VACUMM NVQ382 - asked by Jim Boyd
Asked on 2017-06-30 17:48:19
No answers yet.
Q: Isl this ametek motor 116309-00 fit for a Kenmore Model # 116.21514012 vacuum motor - asked by Randy
Asked on 2017-01-17 20:14:37
A: No , diameter of motor is too big
sue answered on 2017-01-18 19:18:02
