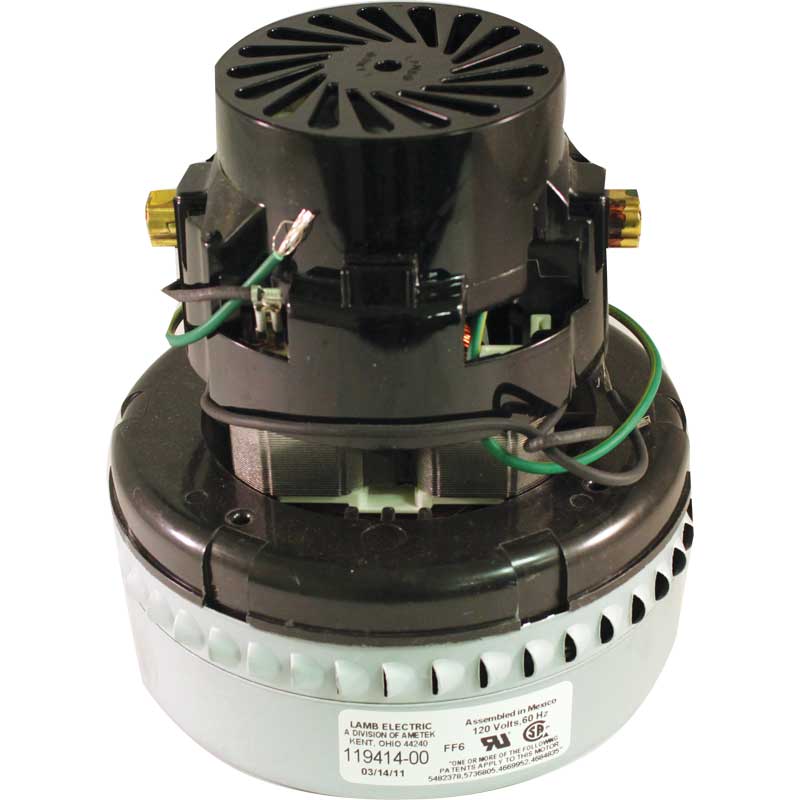

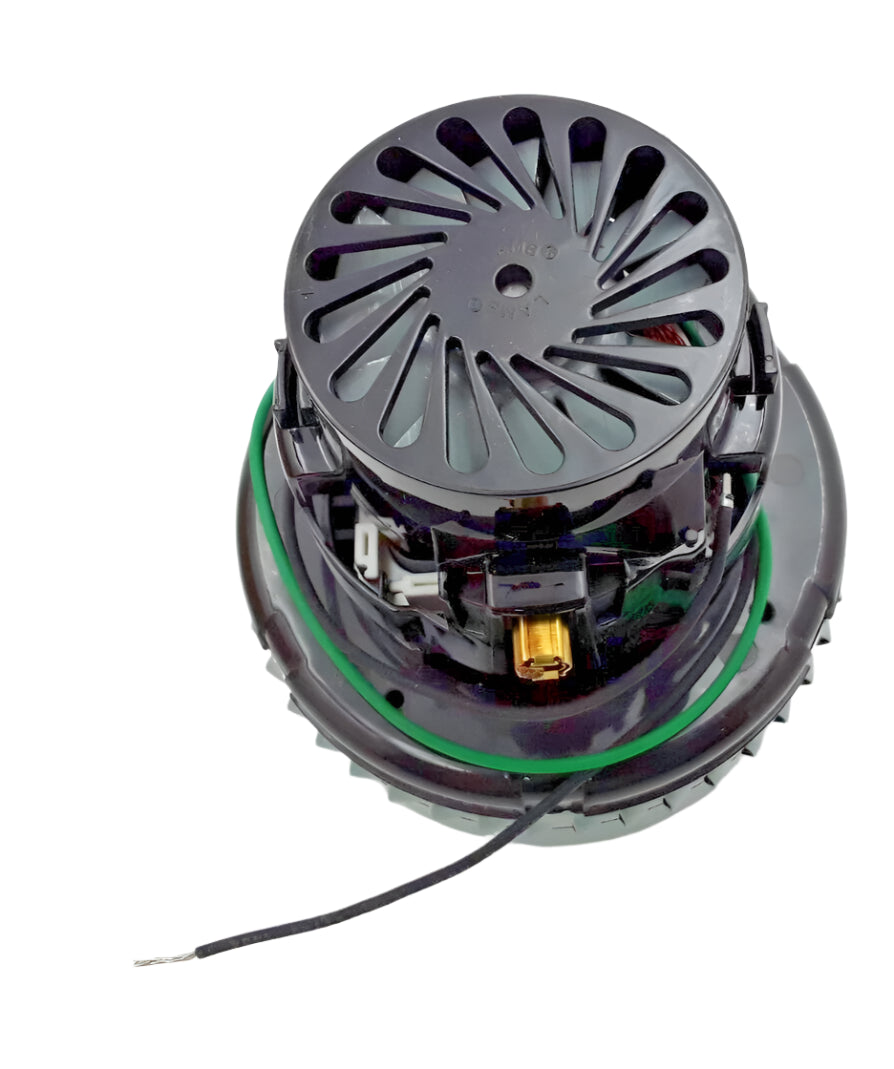

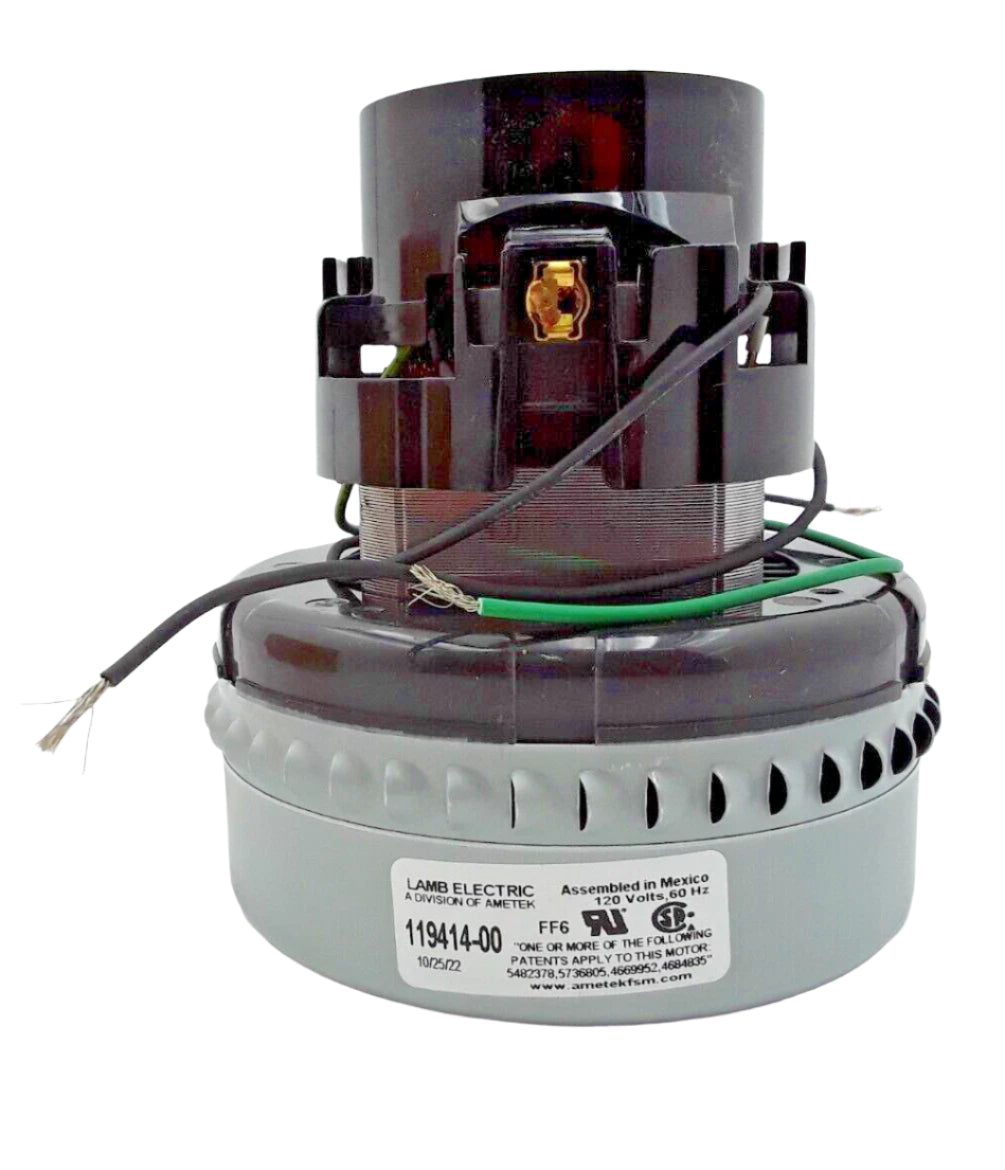

Ametek 119414-00 2 Stage 5.7 inch 120 volt, B/B, Peripheral Bypass Vacuum Motor

New Lamb Ametek 119414-00 motor is 2-stage, 5.7 inch, 110-120 volt. Replaces 115757-P

Motor Specs

• Motor Type: Bypass

• Discharge: Peripheral

• Bearings: Double Ball Bearing

• Sealed Vacuum: 84.3 inches

• Maximum Air Watts: 274

• Maximum Air Flow: 94 CFM

• Motor Speed: 18, 225 RPM


• Fits :Pullman 502, 503, 511, ES2000, ES2800, BIV205, 46CV, JB53, JB75, JB55, JB86; Kent Comet; Atlas VP5717, VK742; Advance 17E, 20E, 24E, J105, J108, SJ105, Sj108, J105F, J108F, J108SF, SJ105F, SJ108F; Mastercraft W6200, W6100, W6509, W6510; Holt HV506, HV758, HV518; Hild 404, 406, 415, 430; Clarke 600A, 609; General G10; Super Suction MW14, LW12; Cassidy 200, 600; Tornado 135, 170, 289, A140-144, 3000, 3100; etc., Danzig Vac 68, 98; National Super Service Colt A, MW14, LW12, Colt 12; Shop Vac 400-01, 462, 462-15, 462-29, 462-30, 932-01, 932-11, 932-12. Powr-Flite DCV5 and DCV17, PF10, PF20, PF25, PF26, PF27, PF35, PF39, PF40; Milwaukee 8911, 8916, 8917, 8935, 8937, 8940.


• Also compatible with
  Power-Flite PF10, Power-Flite PF26, Power-Flite PF35, Power-Flite PF39, Power-Flite PF40, Ametek Lamb 116336-00, Ametek Lamb 14600, Ametek Lamb 14809, Ametek Lamb 14932, Ametek Lamb 115216
  Ametek Lamb 115407, Ametek Lamb 115457, Ametek Lamb 115697, Ametek Lamb 115757P, Pullman 502, Pullman 503, Pullman 511, Pullman ES2000, Pullman ES2800, Pullman BIV205, Pullman 46CV, Pullman JB53, Pullman JB75, Pullman JB55, Pullman JB86; Kent Comet; Atlas VP5717, Atlas VK742; Advance 17E, Advance 20E, Advance 24E, Advance J105, Advance J108, Advance SJ105, Advance Sj108, Advance J105F
  Advance J108F, Advance J108SF, Advance SJ105F, Advance SJ108F; Mastercraft W6200, Mastercraft W6100, Mastercraft W6509, Mastercraft W6510; Holt HV506, Holt HV758, Holt HV518; Holt404, Holt406, Holt415, Holt430; Clarke 600A, Clarke 609; General G10; Super Suction MW14, Super Suction LW12; Cassidy 200
  Cassidy 600; Tornado 135, Tornado 170, Tornado 289, Tornado A140-144, Tornado 3000, Tornado 3100, Danzig Vac 68, Danzig Vac 98; National Super Service Colt A,Colt MW14, Colt LW12, Colt 12; Shop Vac 400-01, Shop Vac 462, Shop Vac 462-15, Shop Vac 462-29, Shop Vac 462-30, Shop Vac 932-01, Shop Vac 932-11, Shop Vac 932-12, Powr-Flite PF40, etc


• Application : Suitable for Wet pickup

Motor Type :    Series Universal
Input Voltage :    120 VAC
Frequency :    50/60 Hz
Fan Diameter :    5.7 in.
No. Fan Stages :    2
Fan System Style :    Bypass
Air Discharge :    Peripheral
Operating Temp :    32-104°F
Bearing System :    Ball/Ball
Frame :    Skeleton
Brush Type :    Carbon
Inlet Tube Dia. :    None
RFI Choke :    None
Speed :    1

ADDITIONAL FEATURES
Regulatory :    UL Recognized, CSA certified,
Comm Bracket :    Plastic
Fan Bracket :    Plastic
Therm Protect :    None
Insulation Class :    Class A
Added Bearing Prot. :
Fan Shell Coat :    None
Electrical Conn. :    Terminal
Duty Cycle :    Intermittent
Special Feature :    G2K design
