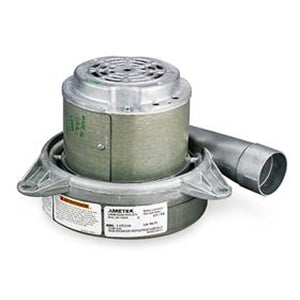

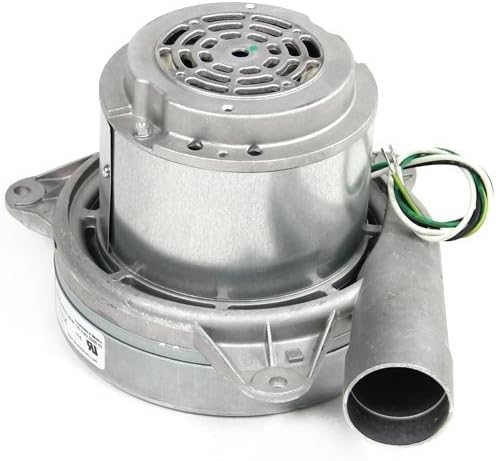

Ametek Lamb 115334 2-Stage, 7.2 inch, 110-120 Volt Vacuum Cleaner Motor

New Lamb Ametek 115334 motor is a 2-stage, 7.2 inch, 110-120 volt. Tangential discharge.
Motor Specs

• Motor Type: Bypass
• Discharge: Tangential
• Bearings: Double Ball Bearing
• Sealed Vacuum: 110 inches
• Maximum Air Watts: 384
• Maximum Air Flow: 102.7 CFM
• Motor Speed: 17, 400 RPM
• Replaces 115472, 115837, 115332, 115334 - W, 115441, 115440, 115639, 115937

Fits: Nutone (CV350), Hayden 3600, Holt HV100, Pullman BIV105, VacuFlo and many major brands. Popular Central Vacuum Canister Motor. Car wash vacuums and Powr-Flite CVG25, AirVac 110, Beam 75, Beam 80, Beam 95, Beam 99, Beam 153, Beam 154, Beam 183, Beam 190, Beam 253, Beam 254, Beam 259, Beam 284, Beam 294, Beam 297, Beam 297S, Beam 297SP, Beam 297C, Broan CV-16, Broan V16C, Budd 0704, Fasco 851, Hayden SV36, NuTone 350, Pullman-Holt 105, Vacuflo 26, Vacuflo 99, VacuMaid P125, VacuMaid P225, VacuMaid P325, Wal Vac 236, Wal Vac 836, Whirlpool FB7700XSO, Miele 312 Red Star, S312i, Miele S314i White star ( replaces Miele part # 04698850)

ACV 110 110P Act III Class Act Special Edition
AirVac 110 AV410
AstroVac MK-III MK-X P-120 P-125
BEAM 75 80 95 99 153 154 183 190 253 254 259 284
Broan CV-16 V16C
Budd 0704
Fasco 851
Hayden SV36 , SuperVac 3600
NuTone 350
Pullman-Holt BIV105
VACUFLO 20 26 99
VacuMaid H1 P125 P325
WalVac 236 836
AirVac 110
Beam 75
Beam 80
Beam 95
Beam 99
Beam 153
Beam 154
Beam 183
Beam 190
Beam 253
Beam 254
Beam 259
Beam 284
Beam 294
Beam 297
Beam 297S
Beam 297SP
Beam 297C
Broan CV-16
Broan V16C
Budd 0704
Fasco 851
Hayden SV36
NuTone 350
Pullman-Holt 105
Vacuflo 26
Vacuflo 99
VacuMaid P125
VacuMaid P225
VacuMaid P325
Wal Vac 236
Wal Vac 836
Whirlpool FB7700XSO
