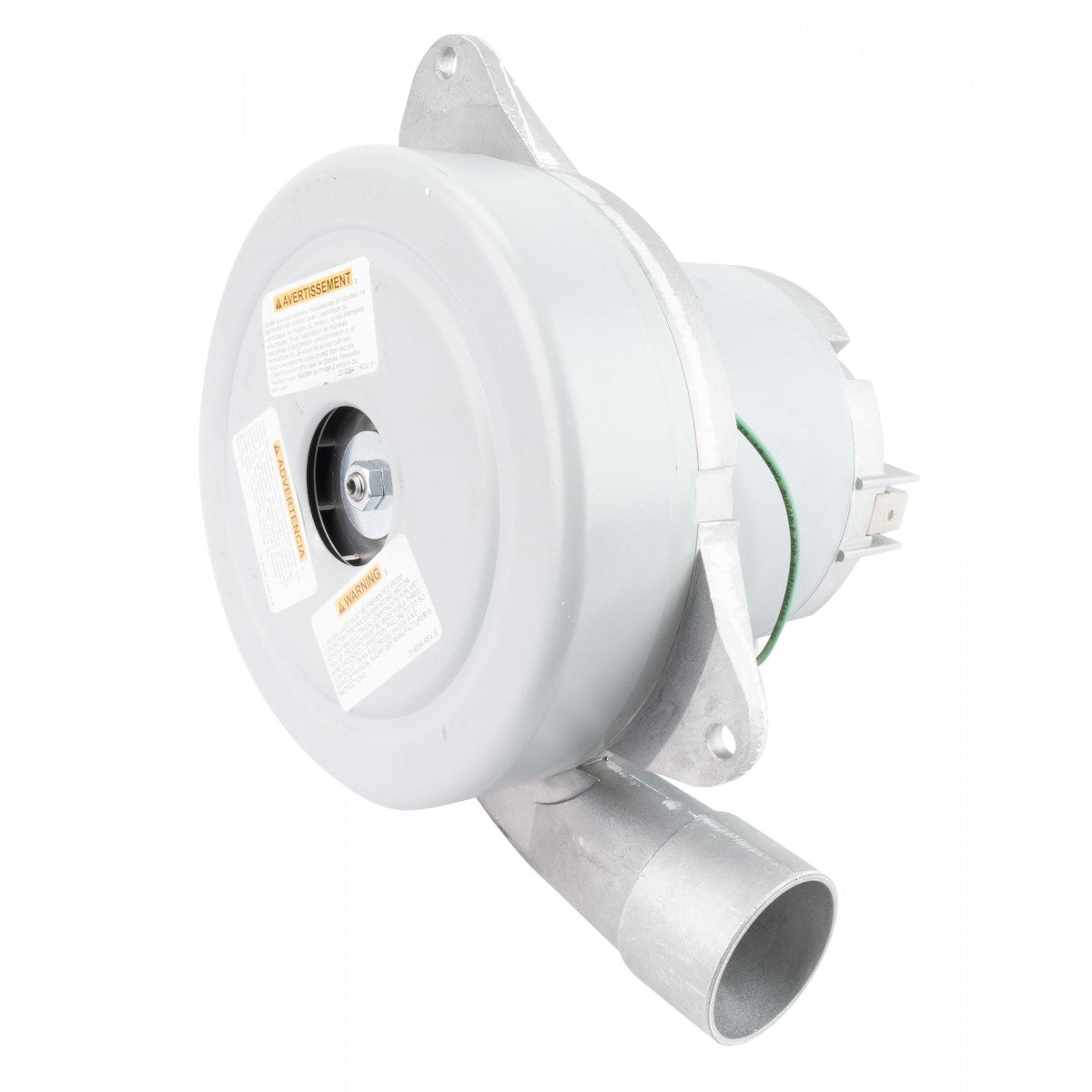

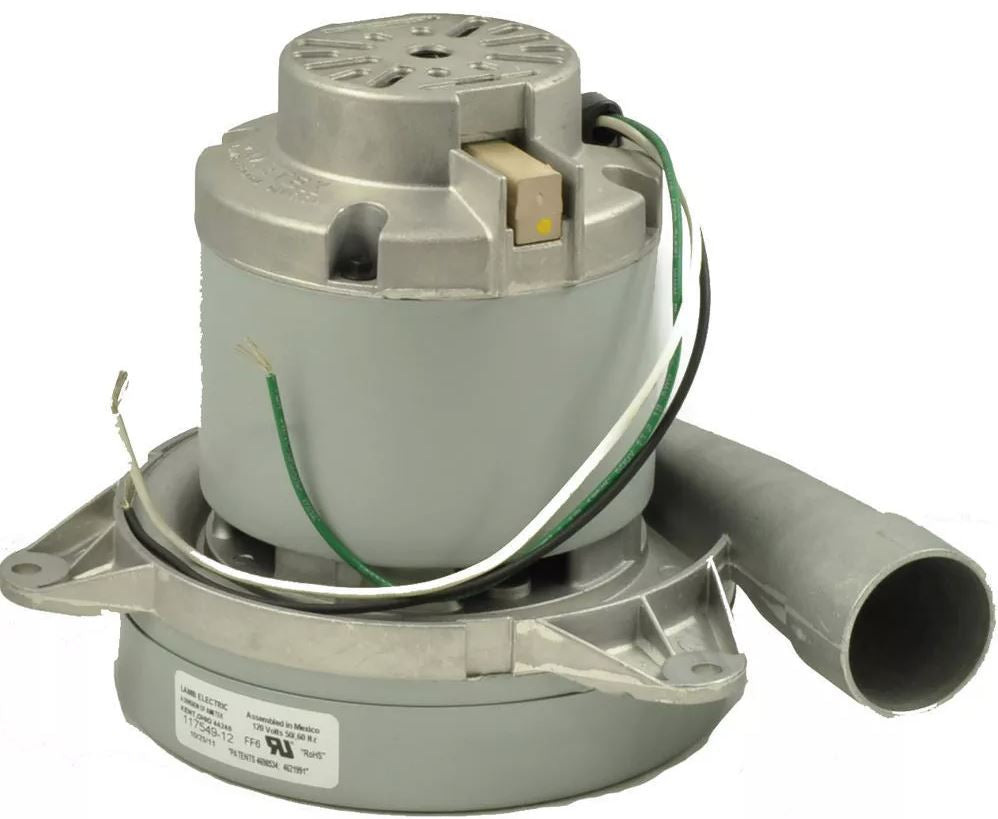

Ametek Lamb 117549-12 Motor , 120V, 7.2", 2-stage, Tangential, 15.3A, With Horn, Beam #140234

This central vacuum motor is a Ametek Lamb 7.2 inch diameter 120V 2-stage bypass central vacuum motor. Also replaces many motors with #7803-01, 8395-01, 117549-07, 119792-00, 119792-01, 119916-12, 122404, FF6 E47185

Specifications:
Voltage: 120
Carbon Brush: 33450-2 Replaced by 833450-57
Motor Stages: 2
Motor Speeds: 1
Motor Type: Series Universal
Motor Frequency: 50/60Hz
Motor Fan Diameter: 7.200
Fan System Style: Bypass
Air Discharge: Tangential
Motor Low Temp: 32
Motor High Temp: 104
Motor Bearing: Ball
Motor Comm Bracket Material: Aluminum
Motor Fan Bracket Material: Aluminum
Motor Insulation Class: A
Motor Fan Shell Coat: none
Motor Duty Cycle: Intermittent
Motor Electrical Connection: Lead Wires
Weight (lbs) 6.000000



Works with
AstroVac MK-V
Beam 287
Imperium 7500
Imperium 7600
Imperium 7800
Imperium CV7500
Imperium CV7600
Imperium CV7700
Imperium CV7800
Nutone CV350
Vacuflo 560
Vacuflo 566Q
Vacuflo 960
Vacu-Maid P125P
Vacu-Maid P225P
Vacu-Maid S2000
Vacu-Maid S2600
VacuMaidS3200
VacuMaidSR46
VacuMaid SR54
Valet ATQ-1500
