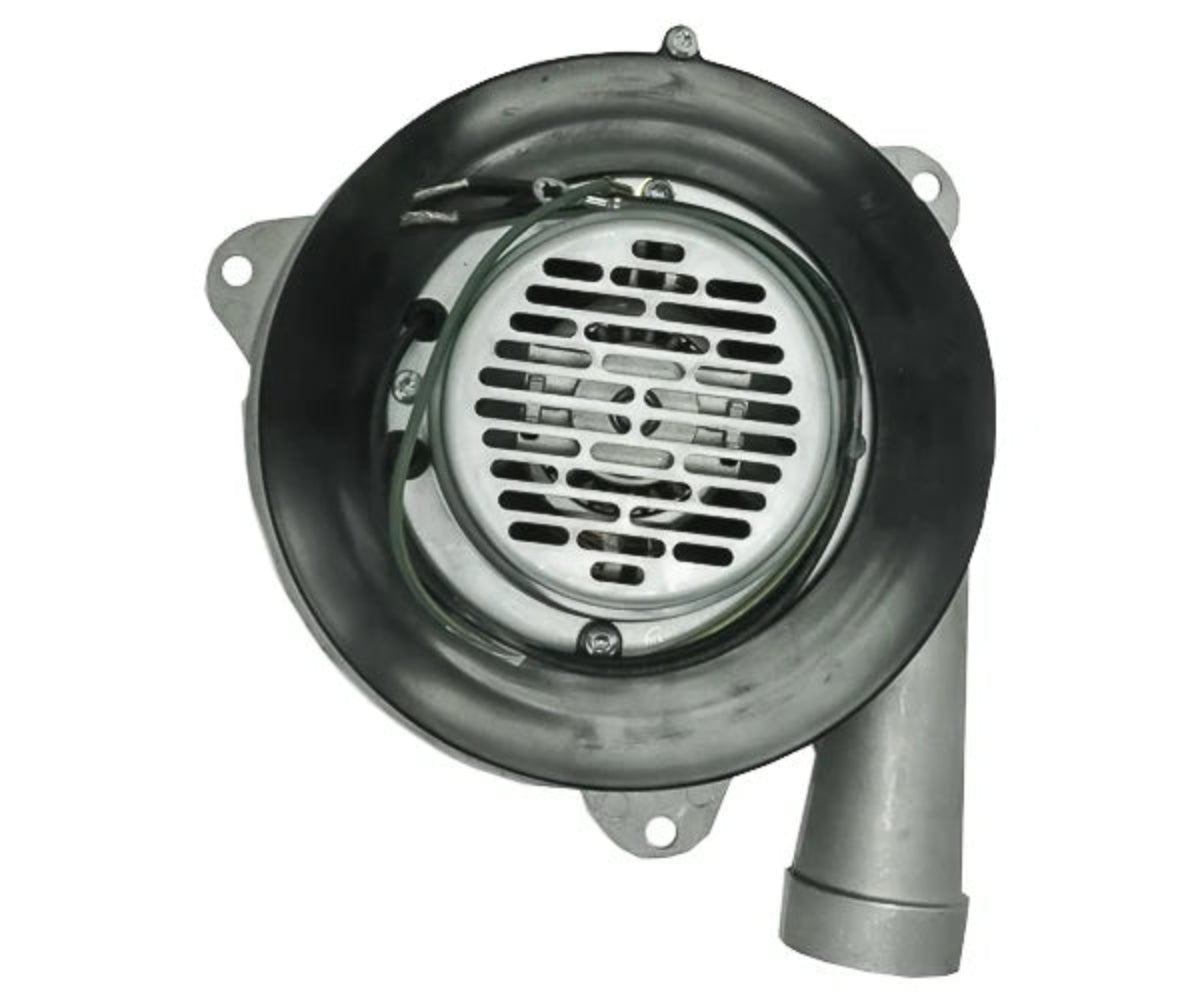

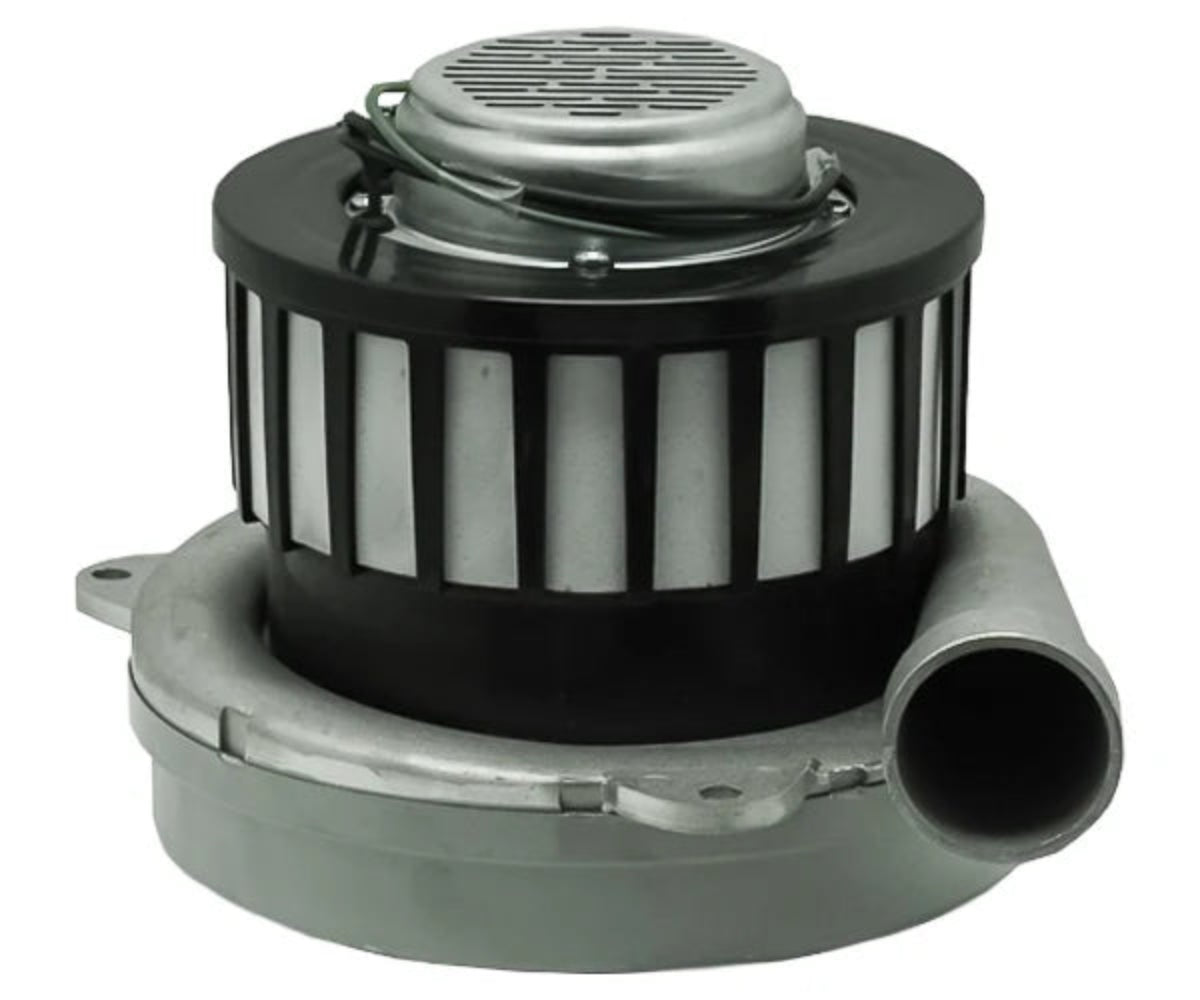

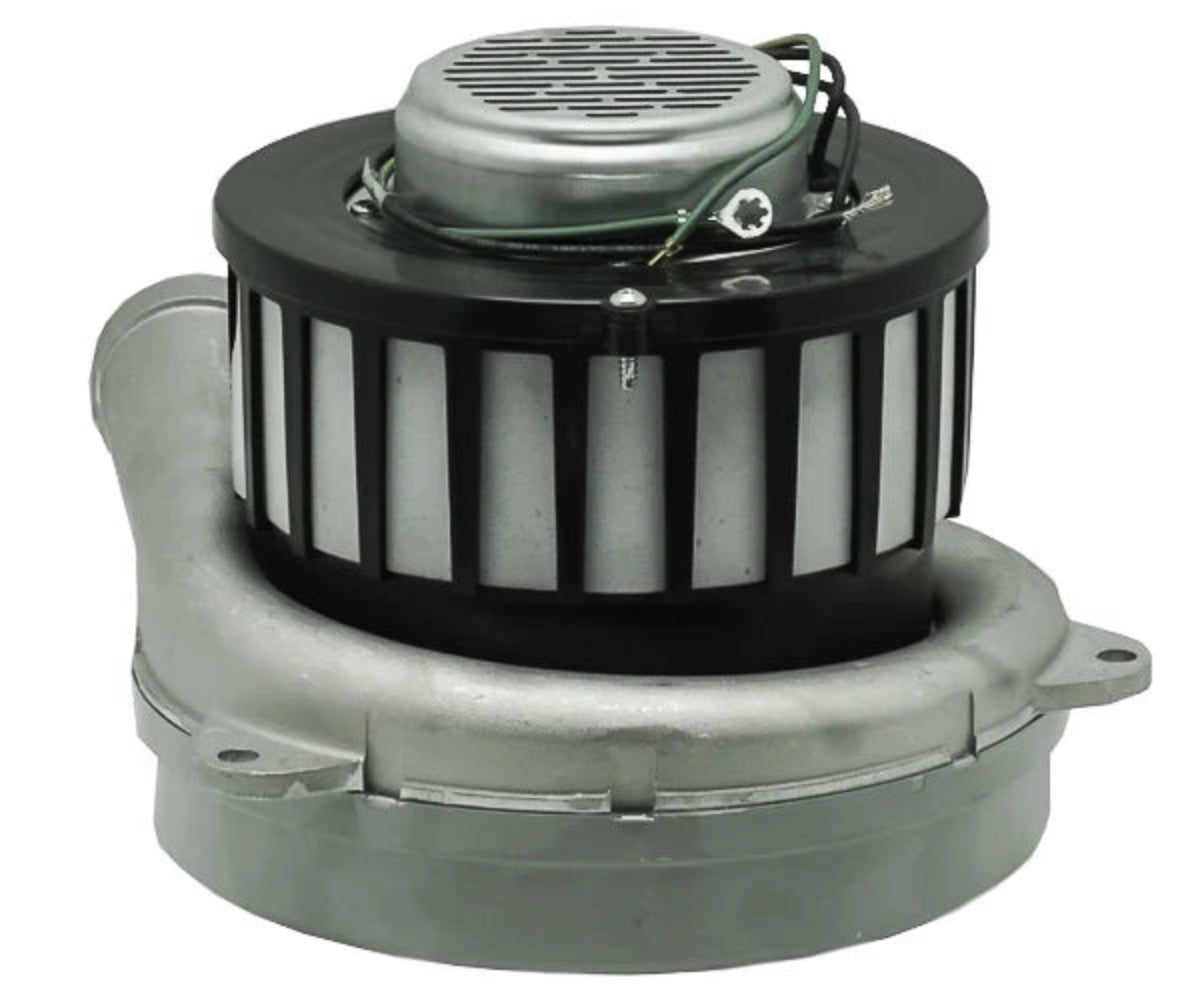

Ametek Lamb 122501-07 2-stage 8.4 inch vacuum motor, 120 volt | Replaces 122501-00, 122503-00, Final Sale

Ametek Lamb 8.4" Bypass Tangential Vacuum Motors reach sealed vacuums up to 152" of H2O and flow rates up to 166 CFM. The motors were designed to increase efficiency, extend brush, bearing and battery life as well as to improve noise. This Ametek Bison FF6 Blower Motor Works with Vacuflo Models 77800 and DB8000

**Important Installation & Identification Notes:**

*   **Model Identification:** Please be aware that the 122501-00 vacuum motor unit may be physically labeled as "2501" or "12-2501." This is standard for this model and does not indicate a different part.

*   **Wiring Instructions:** This product includes a specialized wire set equipped with spades for a secure connection to the motor. For the opposing end, we recommend splicing the wires into your existing system using standard wire nuts to ensure a proper and safe connection.

• Double-stage tapered fan system-8.4" / 213 mm diameter
• Improved sound quality
• "True" tangential discharge bracket
• 120 volts AC
• 3.5" High-Efficiency lamination
• Double ball bearings; 10mm output
• Comes with a filter attached to the body

Special Features

• 1500+ Avg Brush Life-Etermity Carbon Brush
• Up to 44% Overall Efficiency
• High efficient cooling system
• Lamb "Green Power Label"
• Curved Brush
• UL and cUL recognized, category PRGY2 (E47185)
• Same mounting patern as Lamb's 7.2 tangential-bypass

Applications:

• Commercial and Residential Central Cleaning Systems including AirMaster, Modern Day and Vacuflo
• Car wash vac and blower systems
• Equipment operating in environments requiring separation of working air from motor ventilating air
• Designed to handle clean, dry, filtered air only

This is a final sale pricing. No returns
