Canplas Hayden Next Generation Supervalve With Square Door Almond 791790A

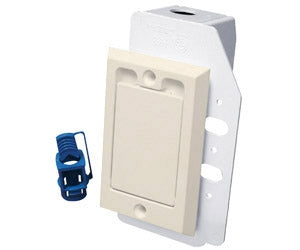

Next Generation SuperValve With Square Door White. #791790A
Unlike a traditional valve, the flange of this new valve is completely separate from the body, therefore it can either be placed on the left or right of the stud depending on your installation requirements.

Larger lower flange for stronger installations.
Recessed mini box accommodates valve plug when back plate is installed upside down.
Tab adds extra strength and stability to the retro-fit installation.
Low volt wire slots allow you to position the wire on either side of the pipe.

Product Specification: SuperValve Direct Connect Inlet Valve

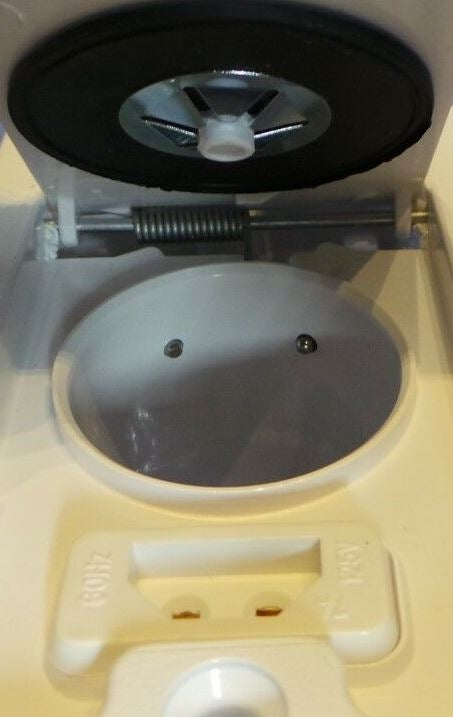

Overview The SuperValve represents a significant advancement in central vacuum system inlet technology. Engineered to streamline installation and enhance user convenience, this electric direct connect inlet valve eliminates the traditional external power cord ("pig-tail"), facilitating a more integrated and aesthetically pleasing installation. Its primary function is to provide power directly to the motorized beater bar in the vacuum cleaning head, activating automatically upon hose insertion.

Core Innovation & Benefit The valve's defining feature is its direct connect design. This innovation removes the requirement for a separate, dangling power cord between the wall inlet and the vacuum hose handle. The result is a simplified, one-step user process: insert the hose to begin vacuuming with a powered brush roll. This design reduces clutter, minimizes potential trip hazards, and presents a cleaner, more professional installation finish.

Key Features & Technical Specifications

1. Versatile Aesthetic Integration:

   • Available in a comprehensive selection of colors and door styles (e.g., standard, decorator, locking) from the Vaculine product line.
   • Designed to complement any residential or commercial interior décor seamlessly.

2. Flexible Installation Configuration:

   • Reversible, Separate Flange: The mounting flange is an independent component from the valve body. This allows installers to orient the flange to the left or right side of the valve opening during rough-in, providing critical flexibility to meet specific job-site requirements and pipe routing.
   • Universal Mounting Plate: The plate supports pipe connections from either the top or the bottom of the wall cavity, accommodating various system layouts without modification.
   • Square Door Design: Offers a modern, clean appearance that aligns with contemporary architectural trends.

3. Simplified Installation & Wiring:

   • Tool-Less Cover Plate: The cover plate secures via a simple snap-in mechanism, ensuring quick closure and safe encapsulation of electrical connections post-wiring.
   • Generous Electrical Access: Features an enlarged wiring compartment, simplifying the connection of low-voltage power wires and reducing installation time.

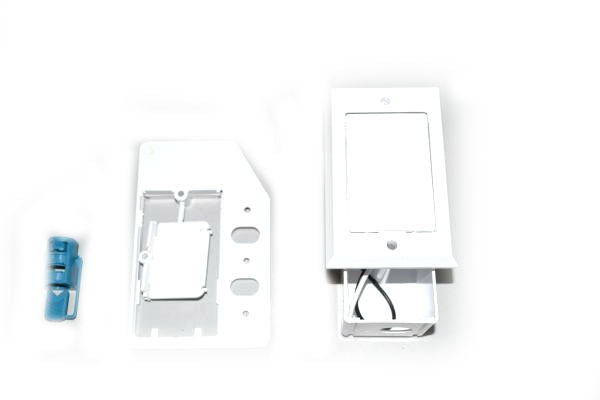

   • Integrated Retrofit Solution: Includes a dedicated retrofit cover plate. This accessory eliminates the need to physically cut the flange from an existing mounting plate during system upgrades or replacements, preserving structural integrity and saving considerable labor.

Application & Use Cases

• New Construction: Ideal for builders and installers seeking a high-end, user-friendly feature with flexible rough-in options.
• Retrofit & Renovation Projects: The included retrofit kit makes it an optimal choice for modernizing existing central vacuum systems without extensive drywall modification.
• Universal Suitability: Appropriate for both residential and light commercial applications where convenience, aesthetics, and reliable performance are prioritized.

Conclusion The SuperValve Direct Connect Inlet is engineered to be the most practical and convenient valve solution for modern central vacuum systems. By integrating the power delivery directly into the inlet and offering unparalleled installation flexibility, it addresses key pain points for both installers and end-users. Its thoughtful design—from the reversible flange and universal mounting to the dedicated retrofit cover—ensures a professional, durable, and aesthetically satisfying result for any installation scenario.
