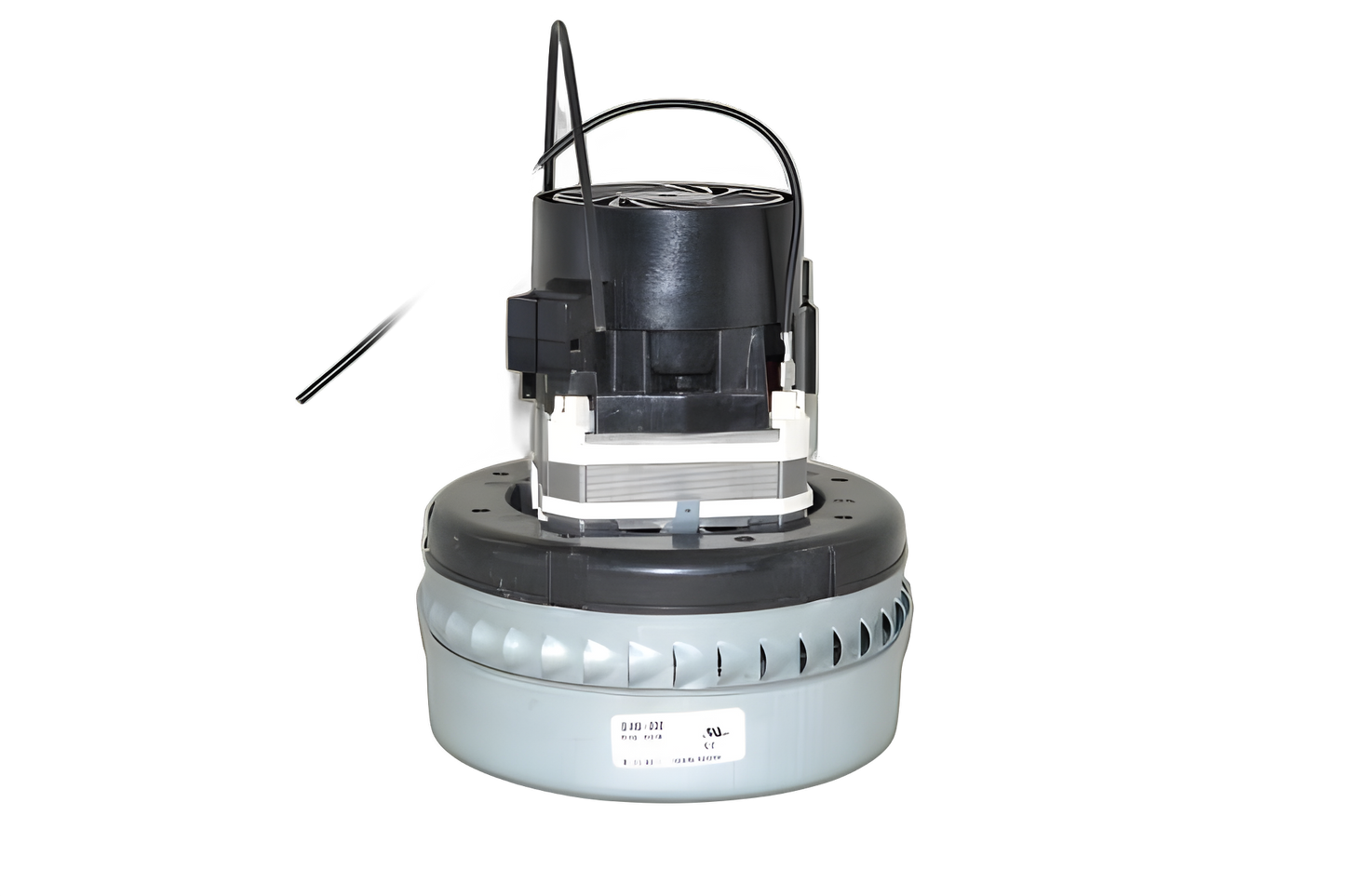

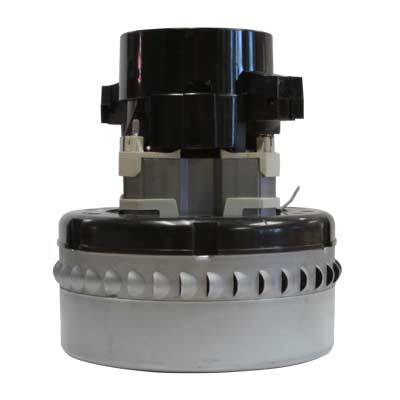

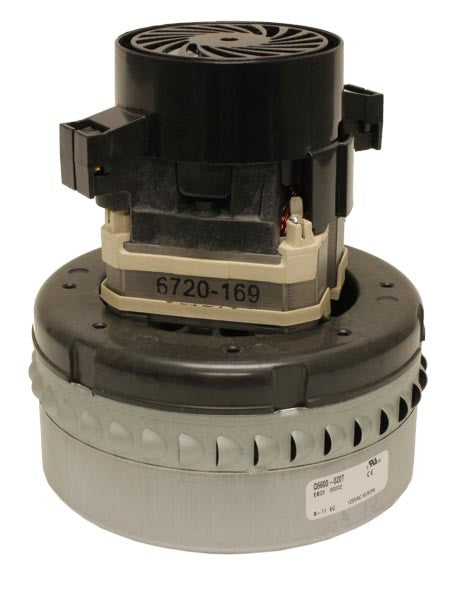

Electro Motor Assembly, 5.7'', 2 Fans, Bypass, Ball Bearing 120 Volts #Q6600-020T-01

Engineered by Electro Motor Group, this 2-Stage High Performance motor assembly delivers robust, consistent suction through advanced dual-airflow technology. The Bypass Peripheral (BPP) design separates working air—which vacuums debris and exhausts through motor fan housing louvers—from a dedicated cooling circuit that protects motor windings via an independent fan. Featuring a 5.7" diameter housing, dual fans, ball bearing construction, and 120-volt operation, this #Q6600-020T-01 assembly combines reliability with thermal efficiency. Ideal for commercial and heavy-duty vacuum systems requiring sustained performance and extended motor life.

Motor Specs:

• Motor Type: Bypass
• Discharge: Tangential
• Bearings: Double Ball Bearing
• Sealed Vacuum: 84.3 inches
• Maximum Air Watts: 274
• Maximum Air Flow: 94 CFM
• Maximum Amps: 8.0
• Motor Speed: 18,225

Part #Q6600-020T-01. Will replace Ametek Lamb 116336-00, 119414-00, 116212-00, 131500-00, Dayton, 2M429, 3GXE9, 4M954
