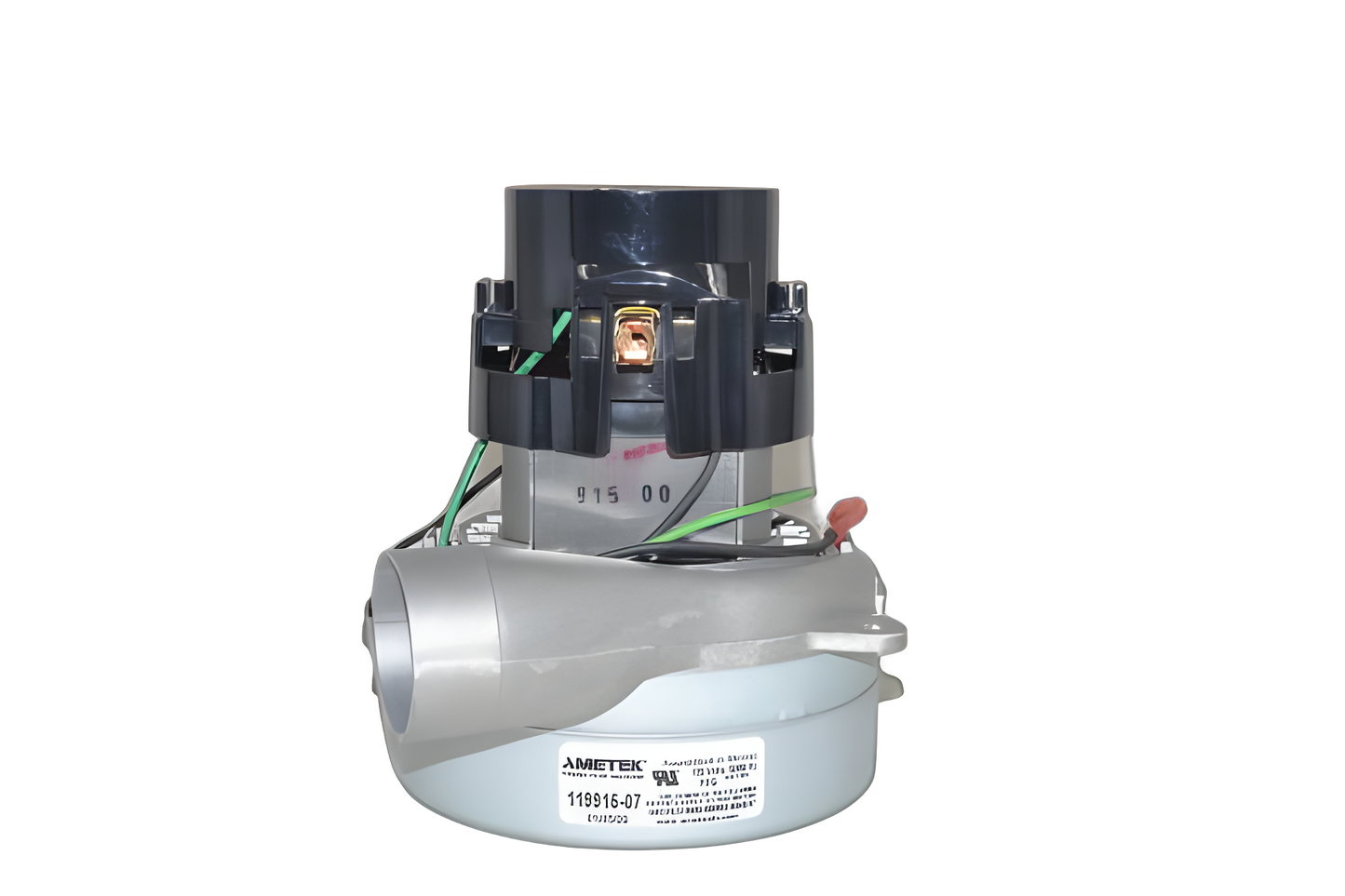

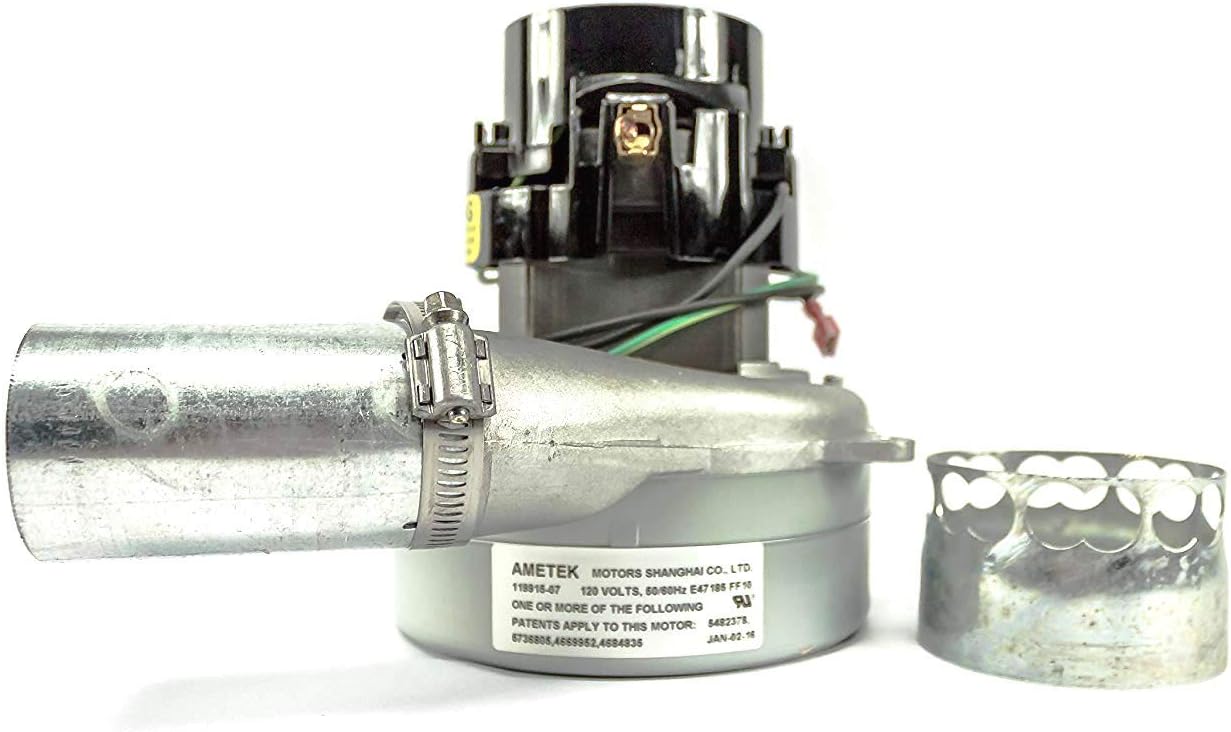

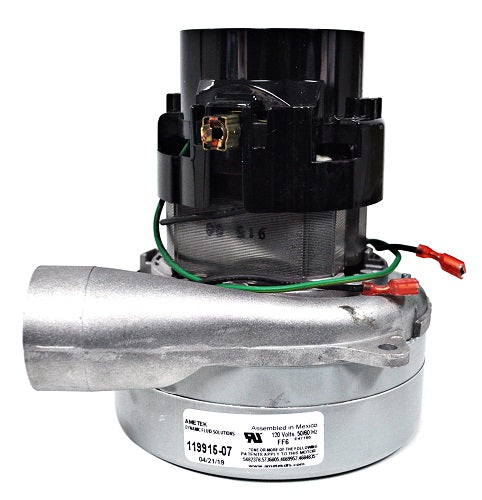

Ametek Lamb 2 Stage, 120 Volt, Bypass Vacuum Motor, Air Watt Series #119915-07

This professional-grade 120V 2-stage bypass motor from Ametek Lamb delivers reliable performance for central vacuum systems. Features include a self-cleaning fan mechanism, aluminum fan end bracket, and robust 10mm bearing and fan shaft for extended durability. Engineered for standard 120-volt AC operation at both 50 and 60 Hz frequencies, it meets UL safety standards (PRGY2 category, E47185 certification) and includes grounding provisions for secure installation. An ideal replacement or upgrade component for demanding commercial and residential applications.

• Fits Vacuflo 466Q central vacuum unit
• Double stage 1725 Watt Motor
• 120 volts Typical performance
• 5.7"/ 145 mm diameter

• 10 mm Fan end bearing

• Single speed AC Motor

• Tangential bypass discharge

• Aluminum Fan End Bracket

• Thermoset Commutator Bracket
• Designed to handle clean, dry, filtered air only
• Reliable OEM replacement part
• Supports consistent vacuum performance
• Ships quickly from the USA

Part #119915-07
