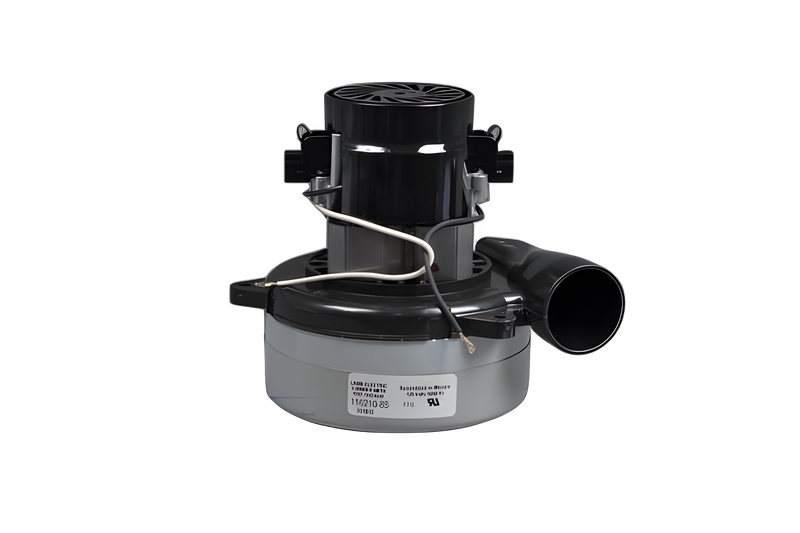

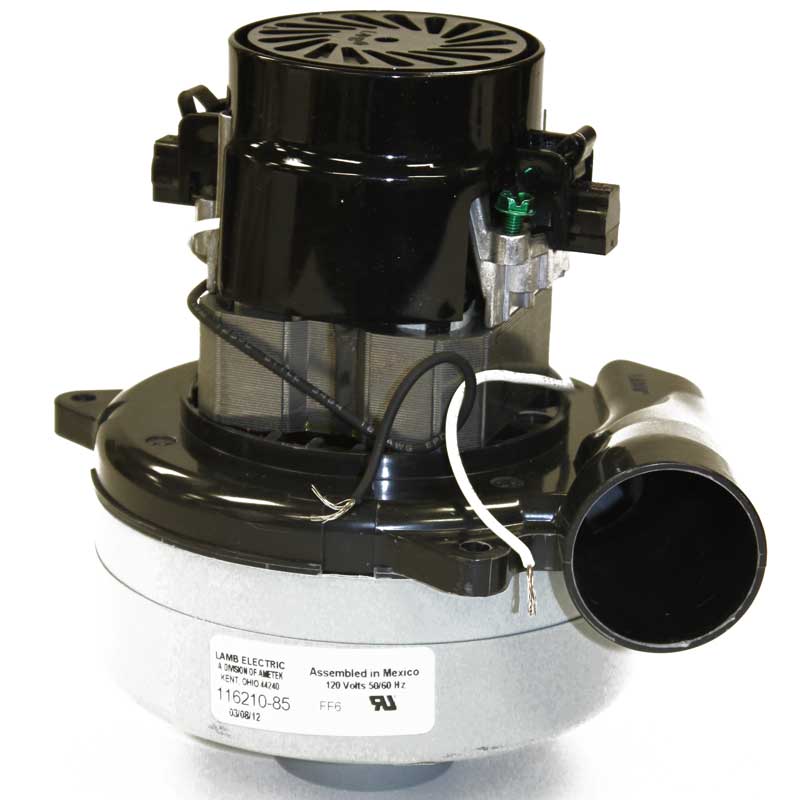

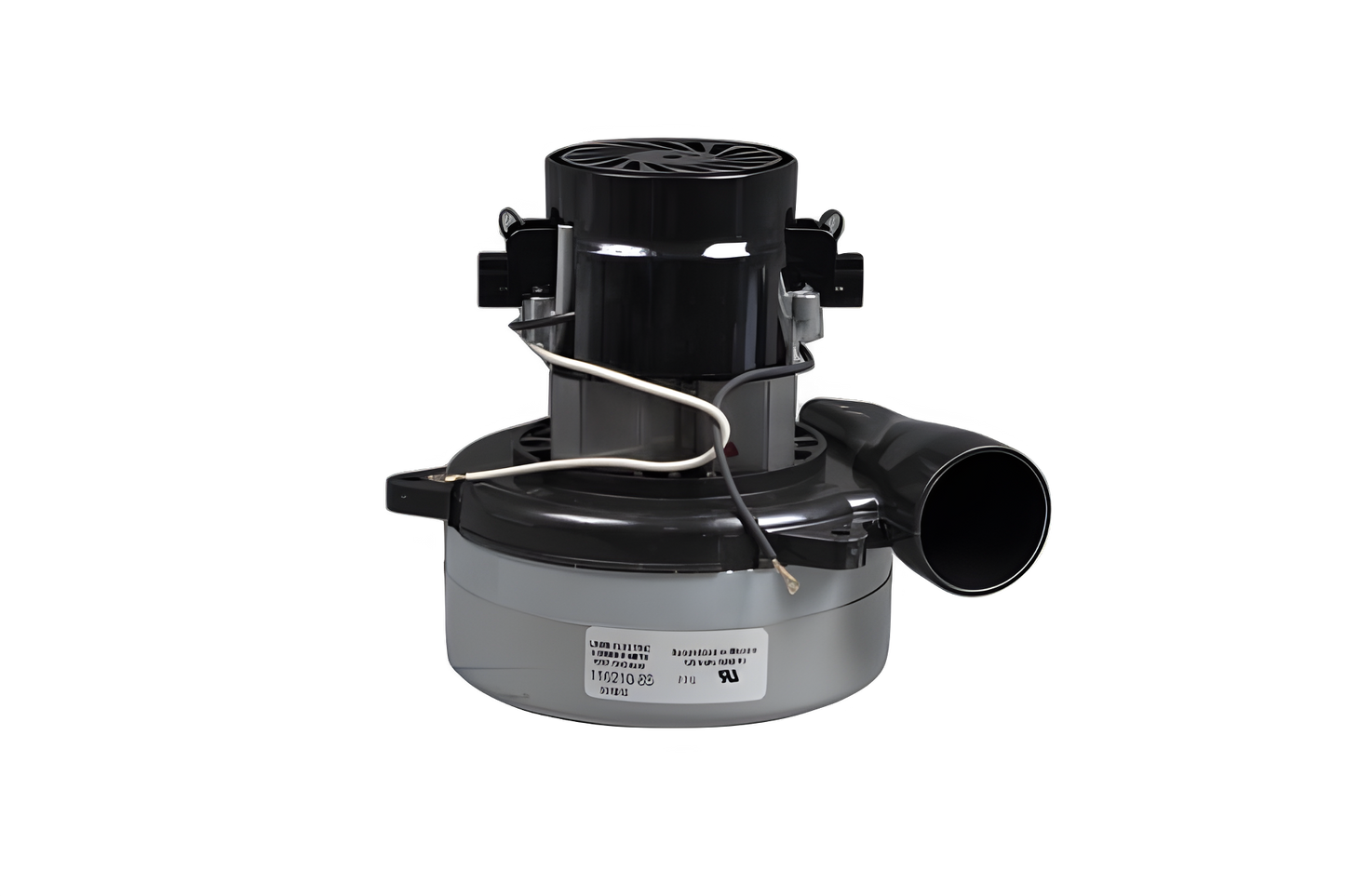

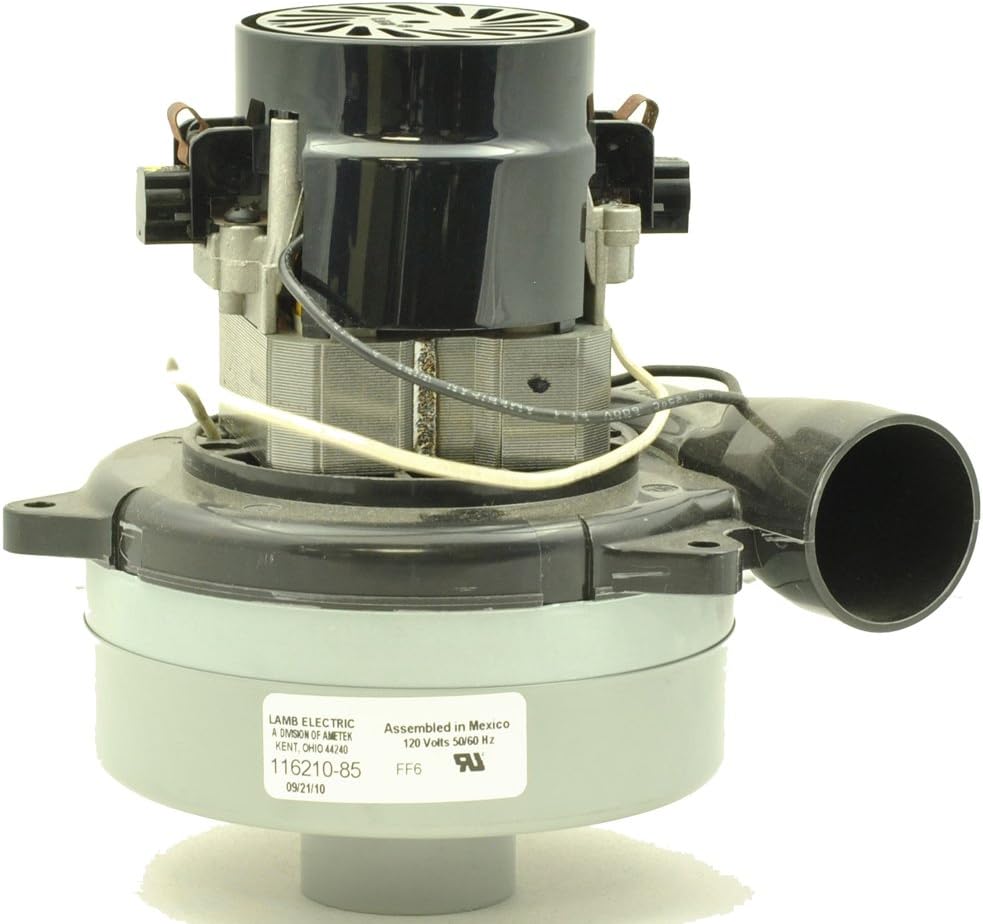

Ametek Lamb Motor, 2 Stage, Bypass W/horn, Ball/sleeve, Fan Shell Has Stub Tube Part #45847 14 Vacuum #116210-85

This genuine Ametek Lamb bypass motor represents premium engineering for dual-motor central vacuum systems. The 5.7" tangential design achieves exceptional sealed vacuum performance up to 220" H2O with airflow rates reaching 107 CFM, making it ideal for high-demand applications. Operating at 120V with dual-stage configuration, the motor features a bottom flange specifically engineered for series motor installations, functioning similarly to turbo-charged systems for enhanced suction capability. The unit includes ball and sleeve bearings with a fan shell stub tube, and offers flexible discharge options with either diecast or thermoset horn designs to optimize air guidance and accommodate diverse vacuum and pressure applications. Part #116210-85 delivers reliable performance for demanding residential and commercial central vacuum setups.

• Fits NuTone CV450, CV570, CV750 central vacuum units
• This motor has 1 7/8 inch tube on the base of the motor.
• Maximum speed of 18,034 RPM.
• Reliable OEM replacement part
• Supports consistent vacuum performance
• Ships quickly from the USA

Part #116210-85
Specifications:
Frame Size    5.7
Volt    120
AC/DC    AC
Fan Stages    2
Output    Tangential
Replacement Brush Kit    833326-51
Motor Type    Traditional Lamb
Speed Control    None
Flow Class    Standard Flow
Power Level    925 Watt
Comments    Same as 116210-50 except added inlet tube
