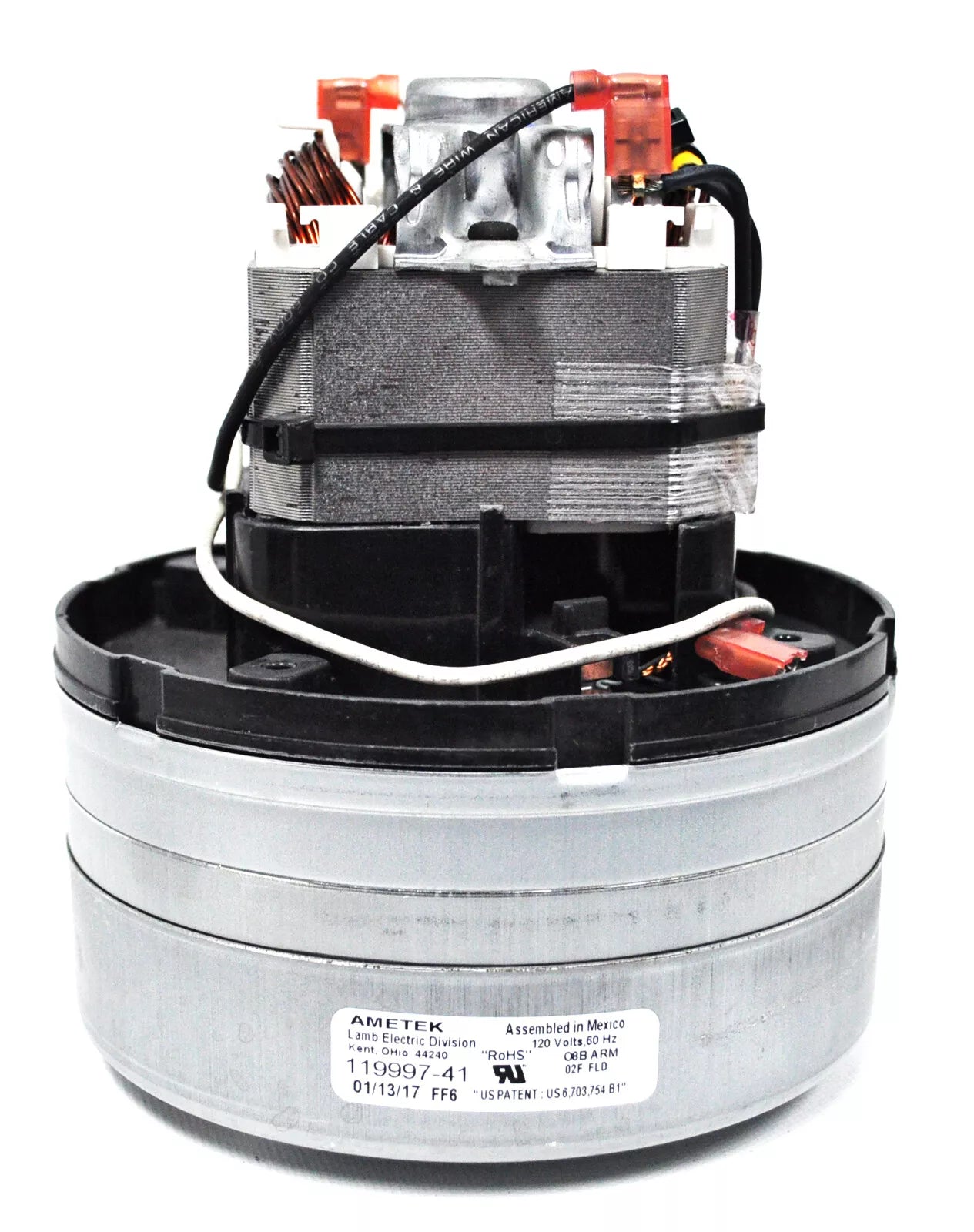

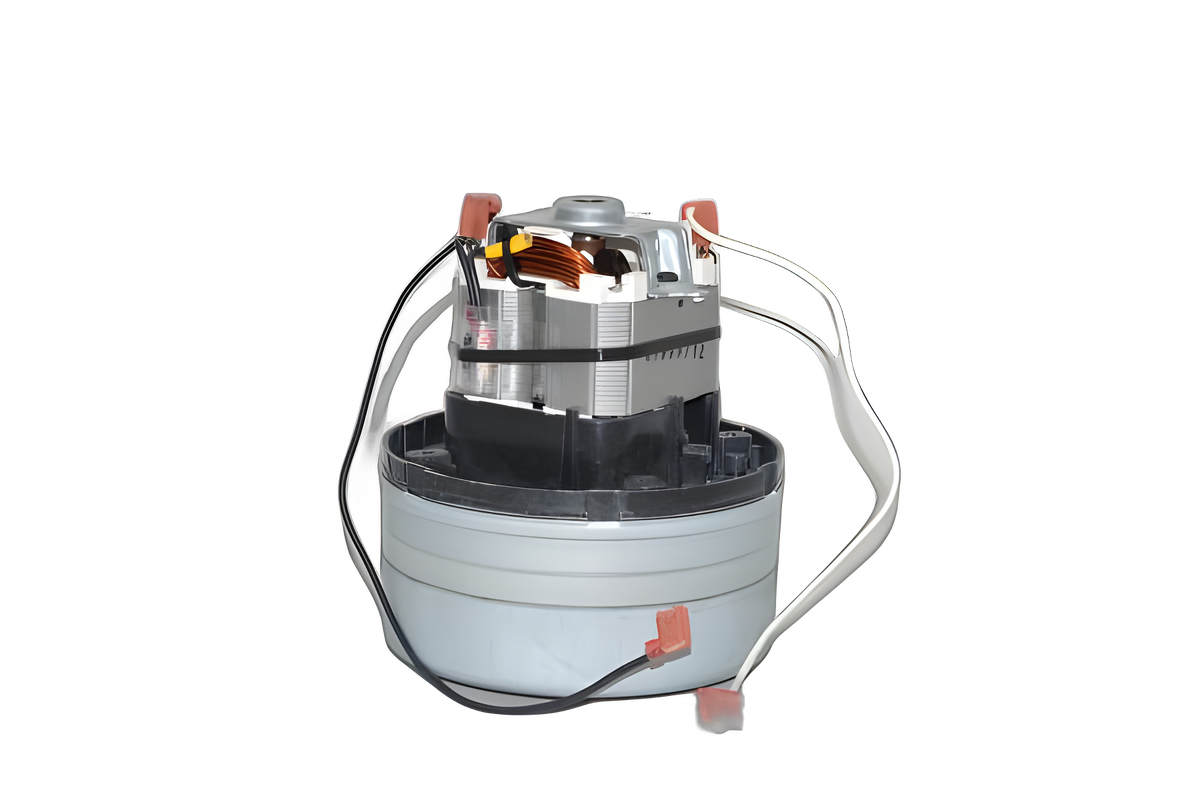

Ametek Lamb 5.7 Inch 120 Volt TF 2 Stage Vacuum Motor #119997-00, 119997-41

Lamb Thru-Flow Vacuum Motors - Advantek reach sealed vacuums up to 136" of H2O and flow rates up to 135 CFM. The Advantek motor design requires less input power for the same air performance, resulting in higher efficiency and longer life. Replaces 119997-00, 119997-41.

Works with AirMaster, AstroVac, Flo-Master, Imperium Built In Central Vacuum Main Units.

Specifications:

• Frame Size: 5.7 inch
• Volt: 120
• AC/DC: AC
• Fan Stages: 2
• Output: Thru-Flow
• Replacement Brush Kit: 8505936-50
• Motor Type: Advantek
• Speed Control: None
• Flow Class: Standard Flow
• Power Level: 1425 Watt
• Discharge: Peripheral
• Double Ball Bearing
• Hertz - 50-60
• Bottom Diameter - 5.7"
• Height - 6-3/4"
• Bolt Height -3-1/4"
• Sealed Vacuum: 143.1"
• Max Air Watts: 650
• Max Air Flow: 130 CFM
• Max Amps: 15
• Motor Speed: 33,834 RPM
• Reliable OEM replacement part
• Supports consistent vacuum performance
• Ships quickly from the USA

Part #119997-41
