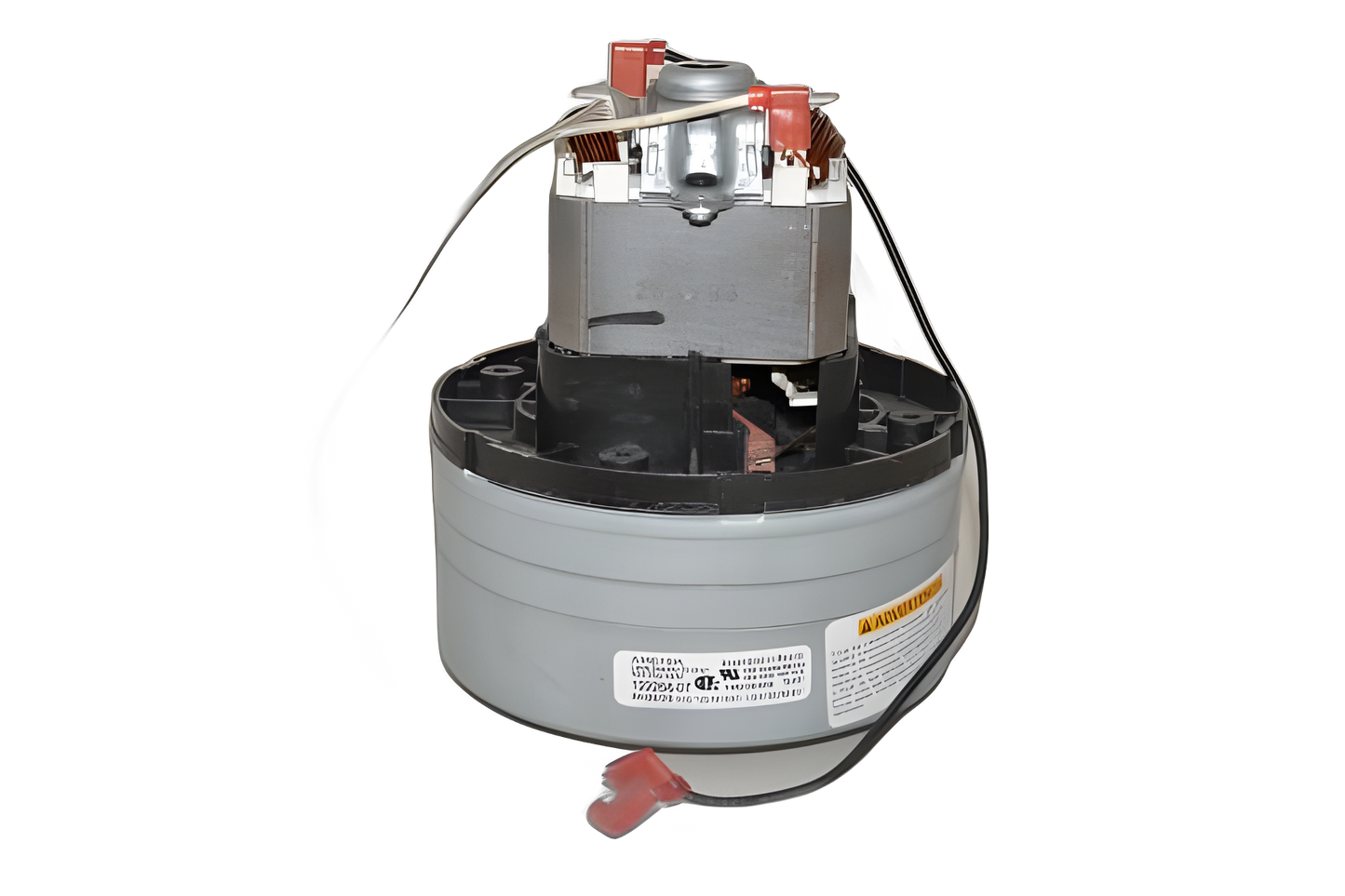

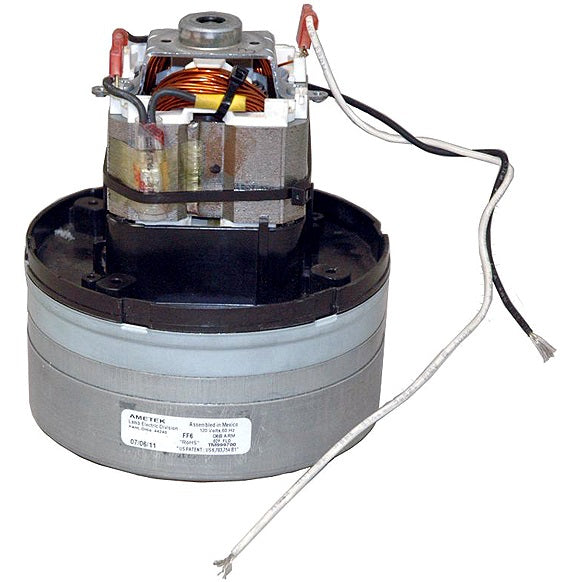

Ametek Lamb 5.7", 698 Peak Air Watts, 2 Stage, 120 Volt Motor #122264-07

This Lamb 120-volt vacuum motor combines commercial-grade engineering with innovative design features for reliable central vacuum operation. Delivering 698 peak air watts, the dual-stage configuration incorporates patented Advantek II diffusion technology and a 3" commercial lamination dual tapered fan system for optimized airflow and efficiency. The motor includes a thermal protection device and top-end mounting boss for secure installation, with grounding provisions for safety compliance. UL recognized under category PRGY2 (E47185), it operates seamlessly on standard 120V AC power at both 50 and 60 Hz frequencies, making it versatile for various residential and light commercial applications.

• Fits Vacumaid central vacuum models: SR14, SR38, Garage Vac Pro models, Imperium CV300
• Also works for AirMaster,  Flo-Master central vacuum units
• Replaces MB122264, MB119997, MB122084.
• Reliable OEM replacement part
• Supports consistent vacuum performance
• Ships quickly from the USA

Part #122264-07
Specifications:
Frame Size    5.7"
Height - 6-5/8"
Volt    120
AC/DC    AC
Fan Stages    2
Output    Thru-Flow
Replacement Brush Kit    8505936-50
Motor Type    Advantek
Speed Control    None
Flow Class    Standard Flow
Power Level    1550 Watt
Thermoset fan end bracket
Stamped steel end bracket
