Ametel Lamb Bypass 2 Stage 120V 8.4" Motor fits 911, 970 Canavac Central Vacuum #122175-00

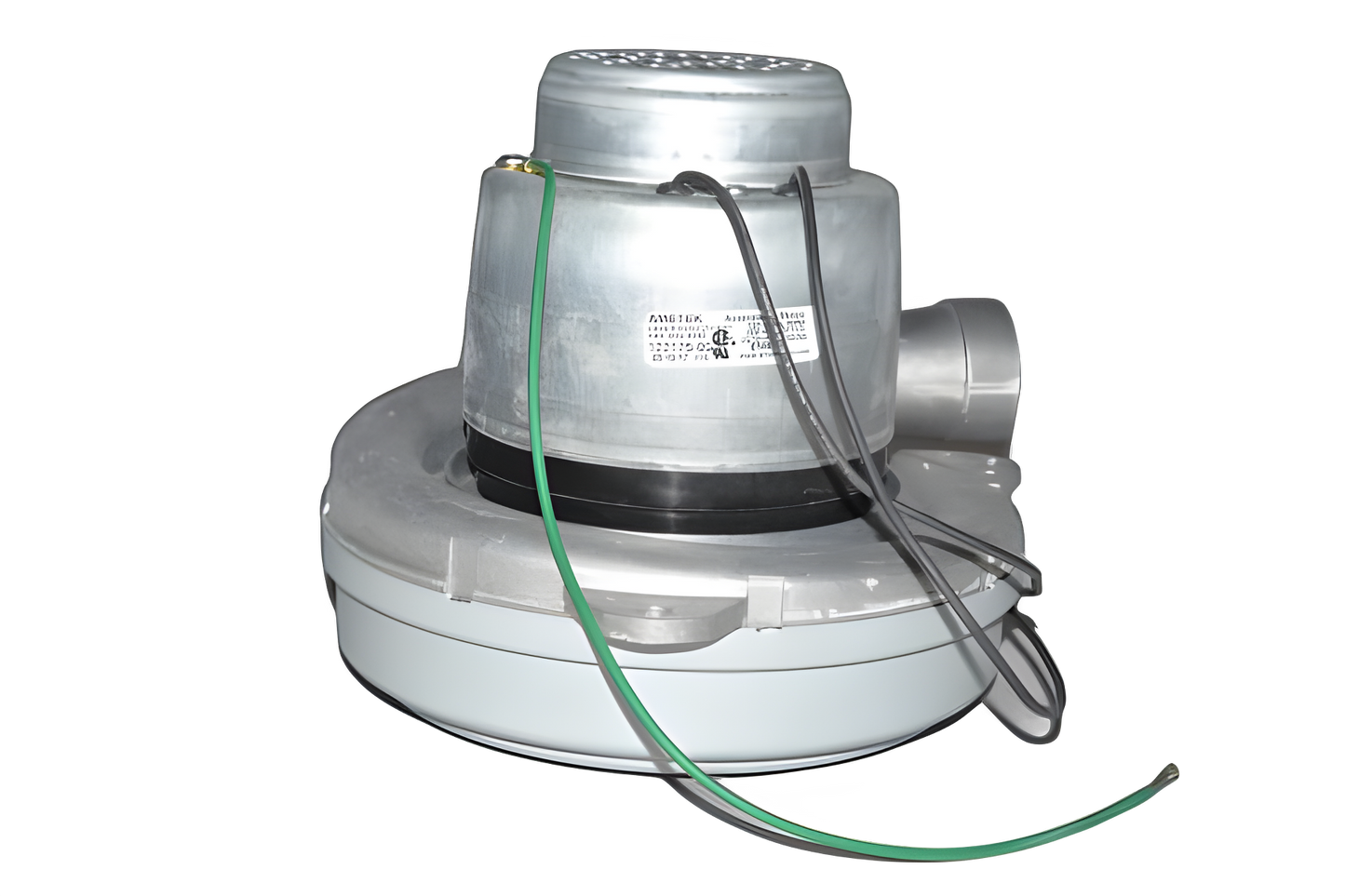

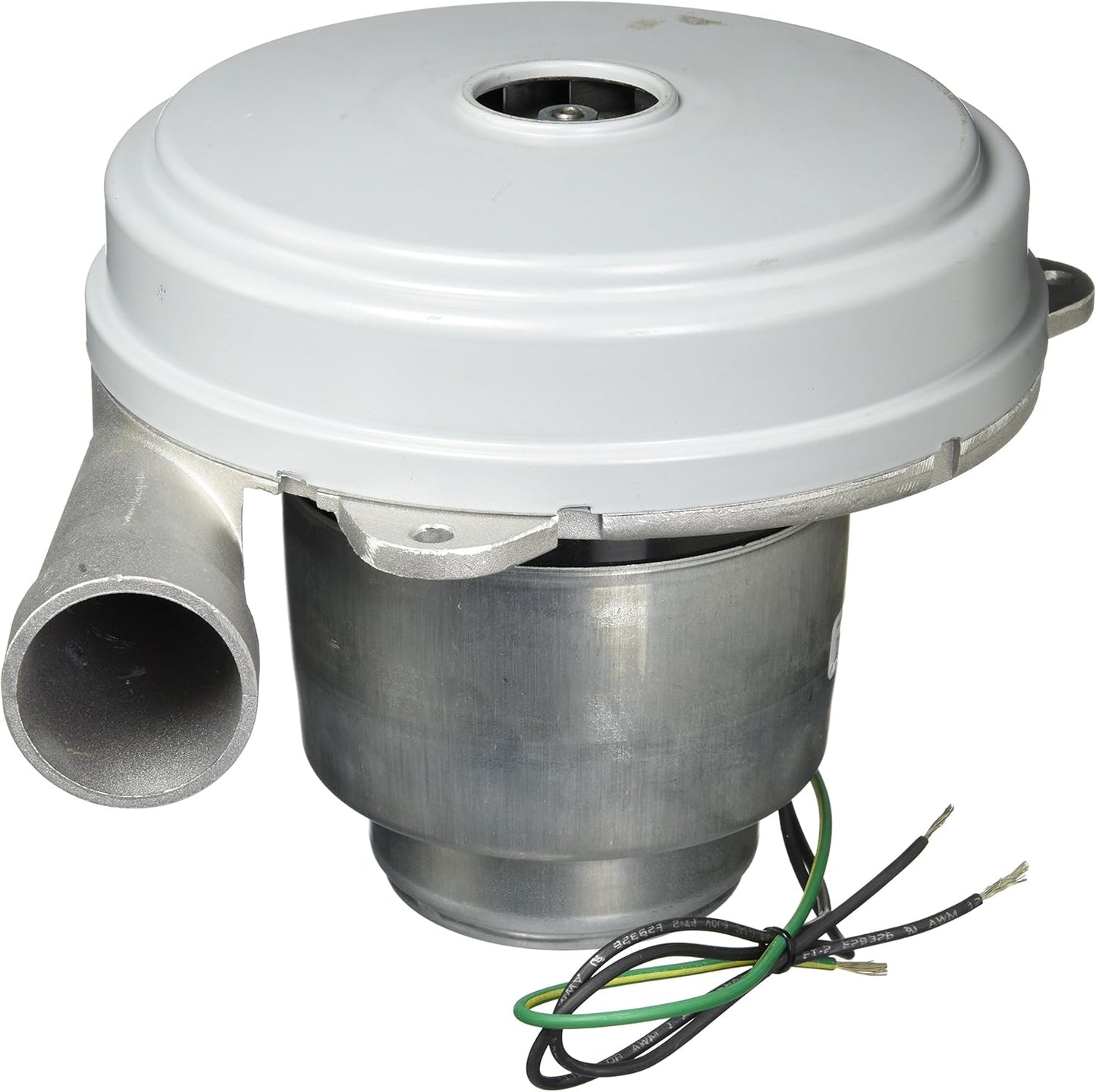

The Lamb Ametek 122175-00 motor is a reliable dual-stage, single-speed tangential bypass thru-flow motor featuring an 8.4" diameter aluminum housing. Known for its quality, Lamb Ametek is a trusted brand in car wash vacuum motors. Fits Cana-Vac
911-XLS (120V), XLS970, Ecopure 911-ECP

Specifications:

Tangential bypass discharge
2 blower stage
1 speed
Open motor enclosure design
CFM @ 2" Orifice: 142
120 volt
60 Hz
13.8 amps
Single phase
700 maximum air watts
Lug motor mounting type
Universal AC/DC motor design
All angle motor mounting position
Ball bearings
8.4" frame diameter
7" overall height
Aluminum mounting brackets
Intermittent duty
1500 hour average life
45% nominal efficiency
UL recognized

• Reliable OEM replacement part
• Supports consistent vacuum performance
• Ships quickly from the USA

Part #122175-00
