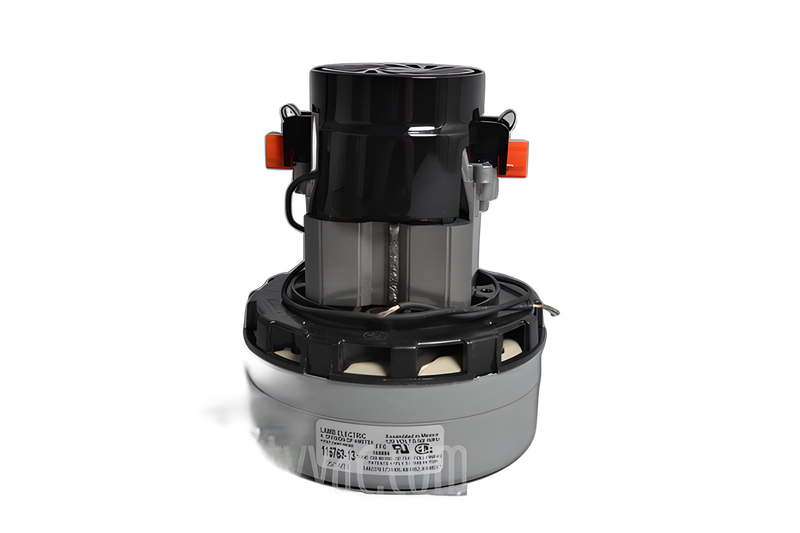

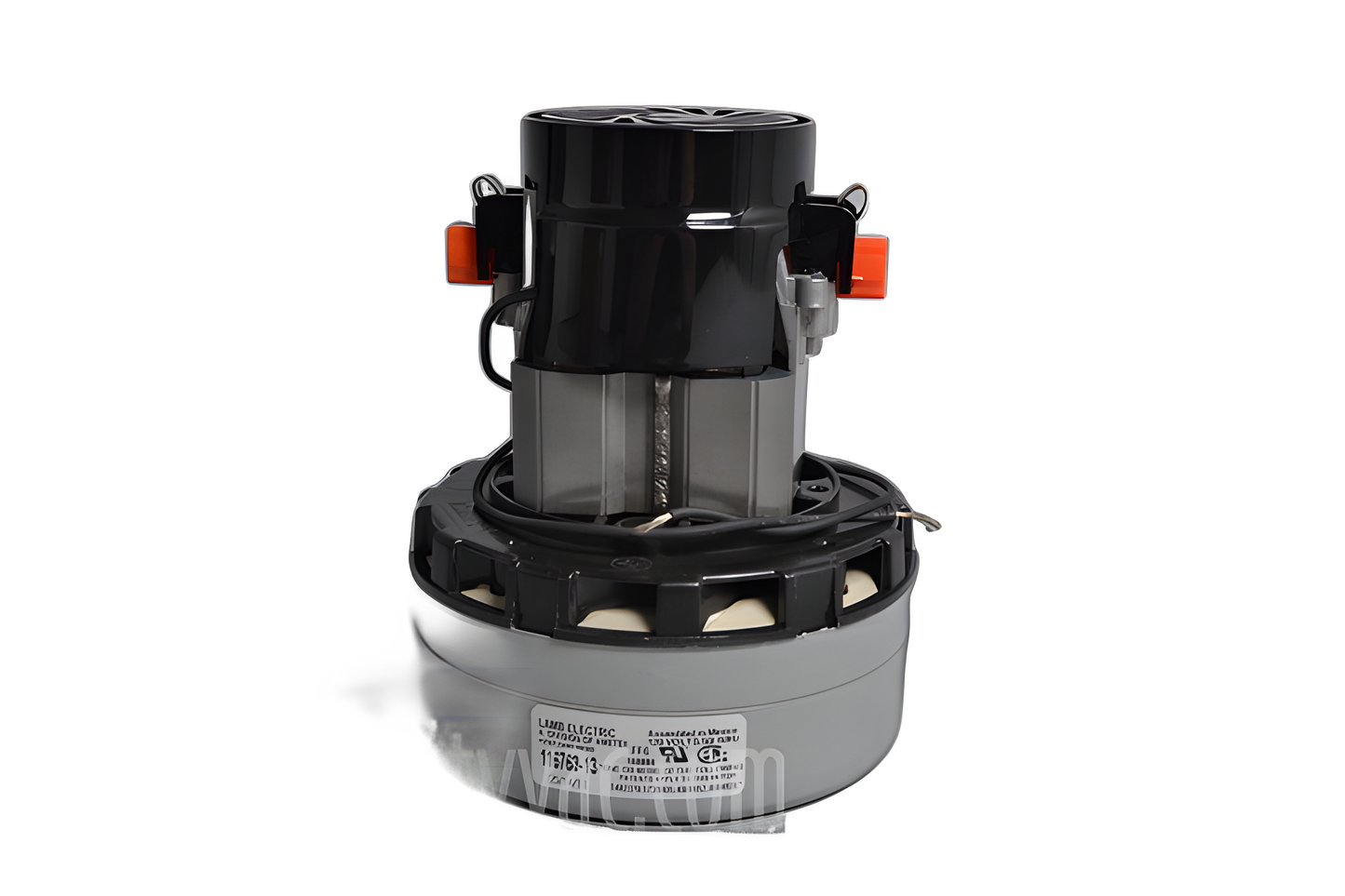

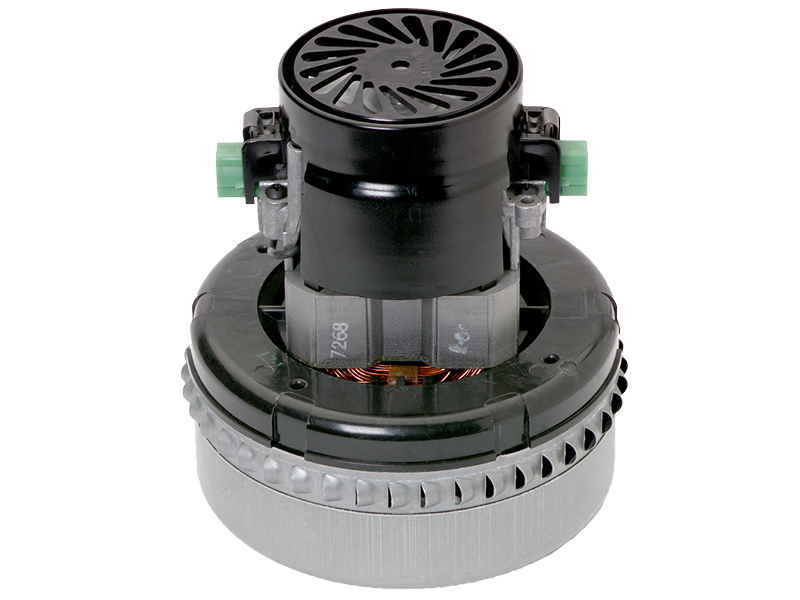

Ametek Lamb Motor, 5.7" Two Stage, 120 Volt, Bypass, Acustek, Thermoset Mounting Brackets #116763-13

This peripheral discharge vacuum motor features a two-stage design engineered for superior performance in demanding applications. Air enters through the motor's base and exits via strategically positioned vents, while a top-mounted cooling fan directs clean airflow across the motor housing for enhanced thermal management compared to alternative motor designs. The motor delivers high starting torque and operates at elevated speeds, generating the vacuum pressure and suction necessary for commercial-grade equipment. Ideal for canister vacuums, utility systems, sprayers, foggers, material handling equipment, car wash stations, and central vacuum installations, this motor efficiently processes clean, dry air in professional environments.

• Works for AirVac 395, Beam 168C, Vacuflo Maxum Whisper Central Vacuum Units
• Reliable OEM replacement part
• Supports consistent vacuum performance
• Ships quickly from the USA

Part #116763-13

Specifications:

Discharge:    Peripheral Bypass
Voltage:    120V AC
Blower Stages:    2
CFM @ 2-In. Orifice:    110 cfm
Mounting Brackets:    Thermoset
Motor Enclosure Design:    Open
Motor/Blower Type:    Bypass
Hz :   60/50 Hz
Max. Air Watts:    387 W
Duty:    Intermittent
Ambient Temperature:    40 Degrees C
Standards:    CSA Certified (LR31393), UL Recognized (E47185)
Motor Mounting Position:    All Angle
Vacuum (H2O Sealed) :   107.1
Motor Thermal Protection :   None
Motor Design :   Universal AC/DC
Average Life:    500 hr
Ins. Class:    A
No. of Speeds:    1
Phase:    Single
Replacement Brushes:    41RD41
Motor Mounting Type:    Lug
Max. Amps:    7 A
Item:    Vacuum Motor
Bearings :   Ball
Footnotes:    69, 72
Duty Cycle:    Intermittent
Nameplate RPM:    26,330 RPM
Mounting Bracket Material:    Aluminum
Full Load Amps:    11.0 A
Frame:    Non-Standard
Motor Application:    Universal AC/DC Motor
Voltage Compatibility :   115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Vacuum Rating:    107.1
Max. Ambient Temp.:    40 Degrees C
Motor Bearings:    Ball
Full Load Amps @ 50Hz:    11.3 A
Usable @ 208V:    Not Usable at 208V
