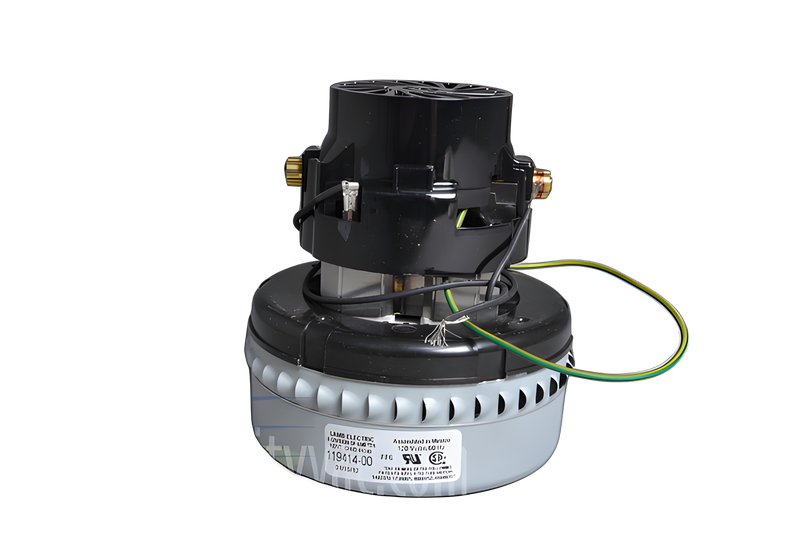

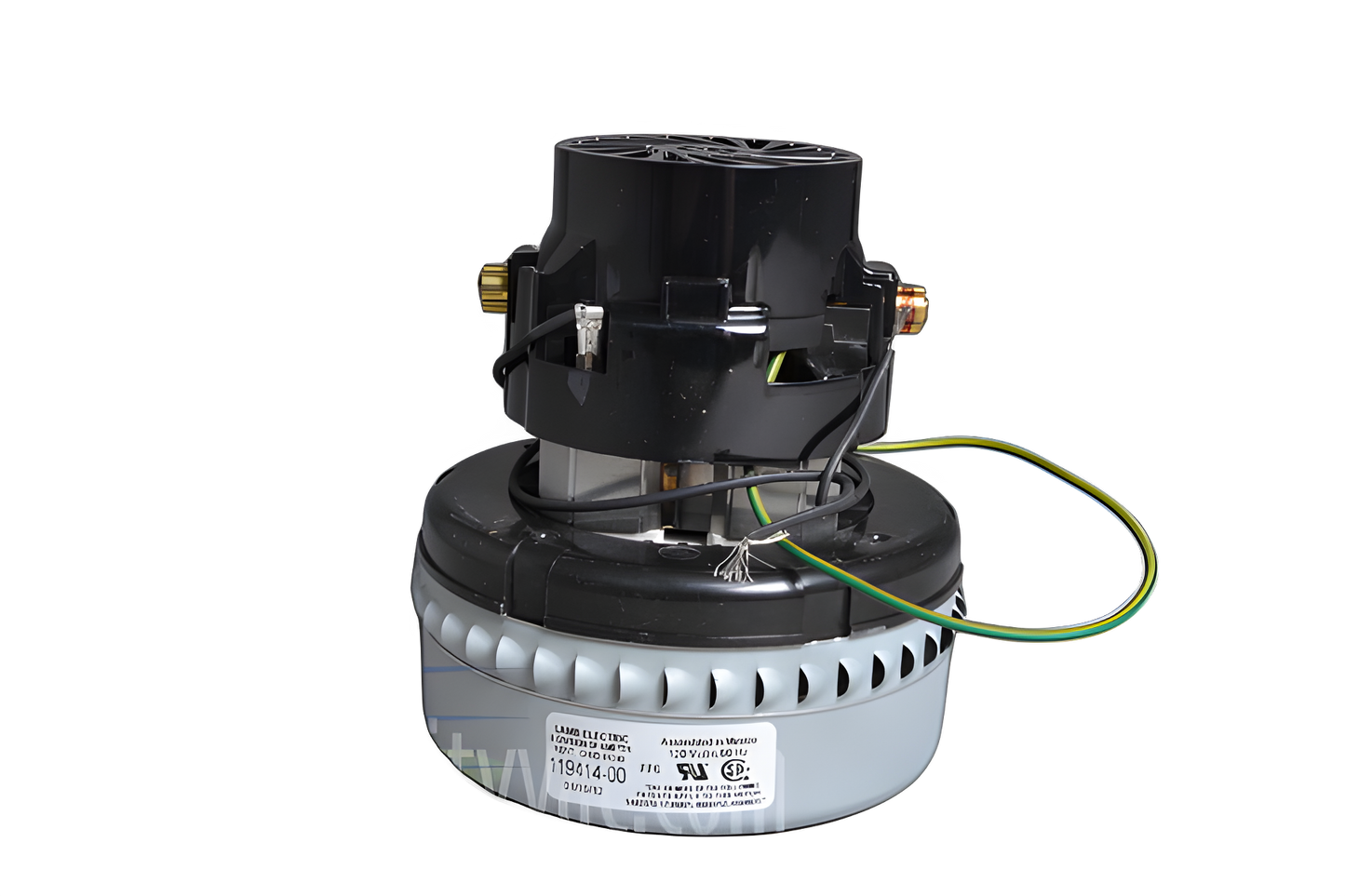

Ametek Lamb Motor Unit By Pass 5.7'', 2 Stage, No Horn #119414-00

This Ametek Lamb motor unit (model 119414-00) delivers dependable performance across commercial applications including car wash systems, utility vacuums, and centralized vacuum networks. Operating at 120V with an 8-amp draw, the dual-stage blower configuration ensures consistent airflow and operational reliability. The peripheral discharge design allows ambient air intake from the motor base with exhaust venting through integrated ports, optimizing thermal management. Built for extended service life with an average operational duration of 500 hours, this motor combines robust engineering with practical efficiency for demanding commercial environments.

• Black motor housing
• 2-stage blower
• 120 volt at 8.0 amp
• 94.0 cfm at 2-inch orifice
• Dual ball bearings
• 1.6 horsepower
• Speeds: 1
• 50/60 Hz
• Peripheral bypass discharge
• Operating Temp: 32°F - 104°F
• 5.7" fan diameter
• Steel skeleton frame
• UL/CSA Recognized
• Motor mounting type: lug
• Maximum air watts: 274
• Overall height: 6 5/16"
• Average life: 500 hours

• Reliable OEM replacement part
• Supports consistent vacuum performance
• Ships quickly from the USA

Part #119414-00
