Details

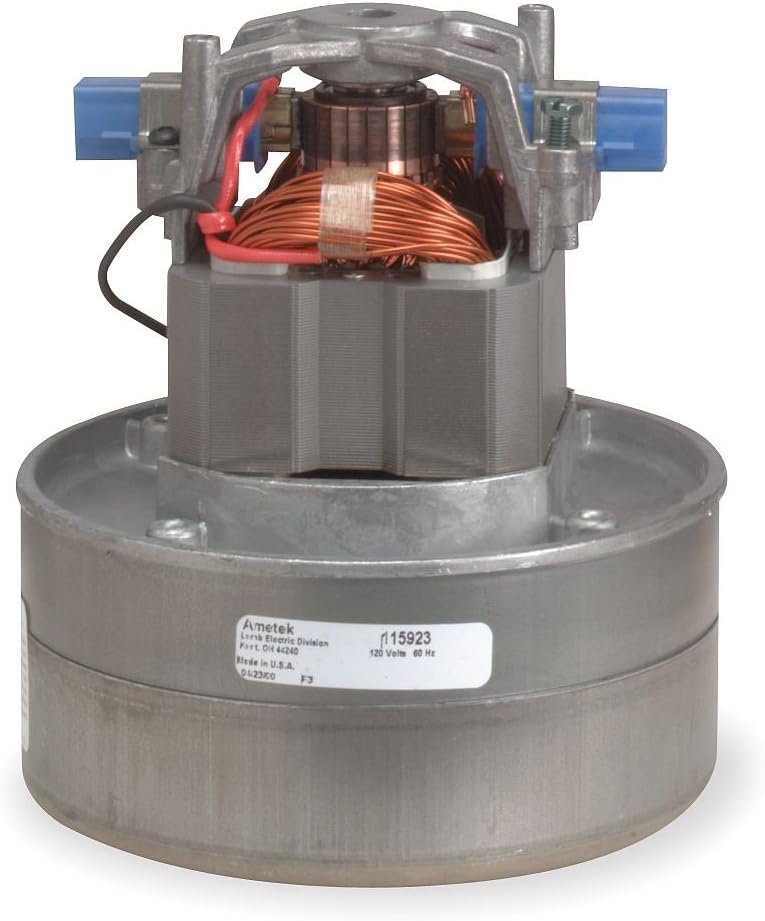

Brand New Genuine Ametek Lamb 2-Stage 5.7" Hi Performance Electric Motor. Fits some TriStar, some Meile including Miele 3000 Series vacuums, s314i and some other vacuum cleaners. Also fits some blower models.
Motor Dimensions: Fan Housing: 5.7", Overall Height: 6 1/4". Please check the motor specs before ordering.
Thru Flow Vacuum Motor/Blower, Body Diameter 5.7 Inches, Blower Stages 2, Voltage @ 50/60 Hz 120 Volts, Maximum Current Rating 10.8 Amps, Maximum Air Power 447 Watts, Bearing Ball/Ball, Air Flow @ 2 Inches Orifice 122.0 CFM, Vacuum (H2O Sealed) 100.4 Inches, Thermal Protection No, Style B, Overall Height 6 3/16 Inches, High Efficiency. Prt #115923, 115-923, 5923
⚠ Does not fit the newer Miele Models. Please reach out to us with your model number if you are not sure.
Some of the customers may experience some issue in installing this motor. One of our customer got it resolved by going some extra steps. As per him,
"The fan shroud on this motor is different from the one on the motor in the vacuum. I just removed the blower housing from the old motor and put it on the new one, and also moved over the board with all the wiring and hooked up the power leads to that board in the same postilions where the old wires were plugged in.
Just to be safe, I ran a sharpie around the edge of the blower housing on the new motor so I would be able to install the new housing correctly. All it takes is a large screwdriver, a hammer and some patience to move the blower housings. "
He has a Miele White Star. Hope this information is useful. Thanks to George for sharing this.
.
Motor Dimensions: Fan Housing: 5.7", Overall Height: 6 1/4". Please check the motor specs before ordering.
Thru Flow Vacuum Motor/Blower, Body Diameter 5.7 Inches, Blower Stages 2, Voltage @ 50/60 Hz 120 Volts, Maximum Current Rating 10.8 Amps, Maximum Air Power 447 Watts, Bearing Ball/Ball, Air Flow @ 2 Inches Orifice 122.0 CFM, Vacuum (H2O Sealed) 100.4 Inches, Thermal Protection No, Style B, Overall Height 6 3/16 Inches, High Efficiency. Prt #115923, 115-923, 5923
⚠ Does not fit the newer Miele Models. Please reach out to us with your model number if you are not sure.
Some of the customers may experience some issue in installing this motor. One of our customer got it resolved by going some extra steps. As per him,
"The fan shroud on this motor is different from the one on the motor in the vacuum. I just removed the blower housing from the old motor and put it on the new one, and also moved over the board with all the wiring and hooked up the power leads to that board in the same postilions where the old wires were plugged in.
Just to be safe, I ran a sharpie around the edge of the blower housing on the new motor so I would be able to install the new housing correctly. All it takes is a large screwdriver, a hammer and some patience to move the blower housings. "
He has a Miele White Star. Hope this information is useful. Thanks to George for sharing this.
.
California residents see Prop 65 WARNINGS WARNING! This product contains a chemical know to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warning.ca.gov
Additional Information
SKU | Ametek-115923 |
---|---|
Brand | Ametek Lamb |
Manufacturer | Ametek Lamb |
Meile s247i does this motor fit
No answers yet.
Be the first to answer this question
Be the first to answer this question
will this fit in a Kenmore model # 116.2481290 canister vacuum cleaner
part #4368506
on the motor itself a number 6366012 is stenciled,
A:
No. This will not work. 4368506 is discontinued
Support answered on December 10, 2017
Do you know if this will fit the tristar cxl
A:
Please check the motor https://www.ezvacuum.com/electrolux-canister-vacuum-main-suction-motor-p-4168.html
Support answered on October 18, 2016
Will this fit a Compact ICE Electra model C-7?
A:
No. Please check this one instead: https://www.ezvacuum.com/tristar-compact-vacuum-cleaner-motor-2-stage-5-7-inch-110-120-volt.html
EZvacuum Support answered on April 3, 2020
Will this fit the DXL
A:
No
Support answered on December 4, 2018
